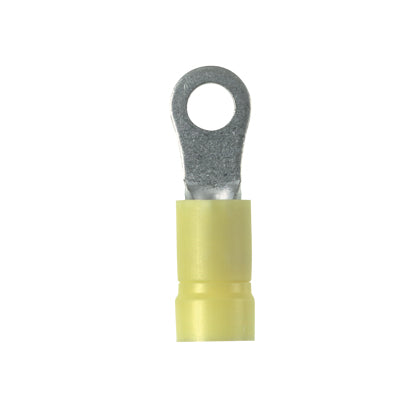

Panduit PV10-14R-E | Loose Piece Ring Terminal | UPC - 07498336241
Regular price
$31.95
Unit price
Brand: Panduit
|
SKU:
10044796
Regular price
$31.95
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 1/4 in Stud, 1.23 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.52 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PV10-14R-E | Loose Piece Ring Terminal | UPC - 07498336241 Key Specs
| Stud Hole Size (In.) | 27/100 |
| Stud Hole Size (mm) | 6.8 |
| Stud Size | 1/4" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 300 |
| Maximum Voltage (kV) | 0.3 |
Panduit Panduit PV10-14R-E | Loose Piece Ring Terminal | UPC - 07498336241 Environmental Information
| Panduit's RoHS Statement | Download and View |
