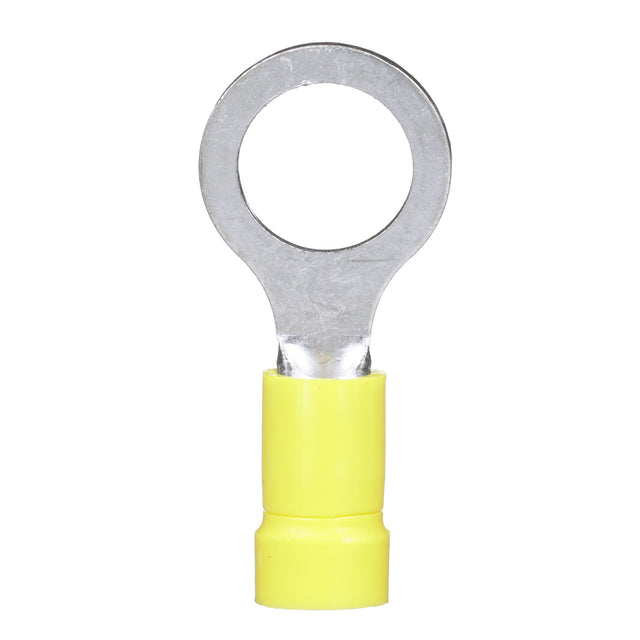

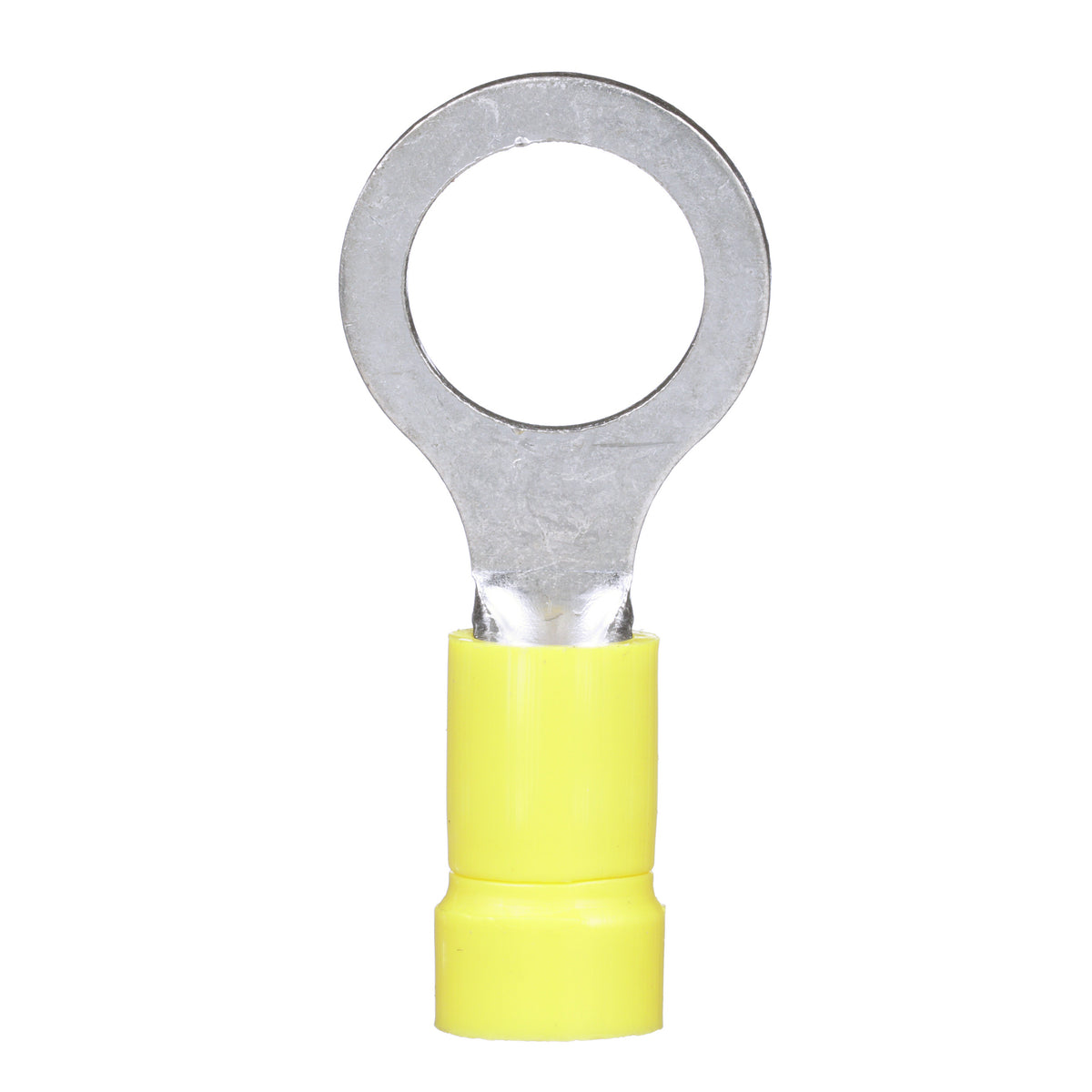

Panduit PV10-38R-D | Pan-Term Ring Terminal, Yellow, Vinyl, 10-12 A...
Description
Description
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.
Ring Terminal, 12 " 10 AWG, 3/8" stud size, vinyl insulated, funnel entry, bulk package.
Panduit Pan-Term Terminal, Type PV-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 3/8 in Stud, 1.31 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.58 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.41 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PV10-38R-D - Features
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Expanded insulation for large wire OD
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV10-38R-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-38R-D |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 10 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 300 |
| Maximum Voltage (kV) | 0.3 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.66 |
| Barrel Length (mm) | 16.6 |
| UPC | 07498380139 |
