Brand: Panduit
|
SKU:
10044797

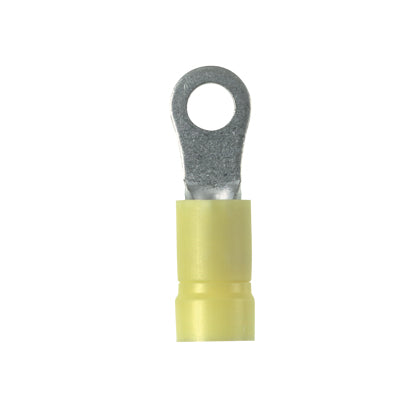

Panduit PV10-38R-E | Loose Piece Ring Terminal | UPC - 07498336425
Regular price
$26.68
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-38R-E | Loose Piece Ring Terminal | UPC - 07498336425
Regular price
$26.68
Unit price
Description
Description
Ring Terminal, 12 – 10 AWG, 3/8" stud size, vinyl insulated, funnel entry, convenience package.
Panduit Panduit PV10-38R-E | Loose Piece Ring Terminal | UPC - 07498336425 Key Specs
| Stud Hole Size (In.) | 19/50 |
| Stud Hole Size (mm) | 9.5 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel |
| Flammability Rating | UL 94 V-0 |
| Insulation Diameter (In.) | 0.23 |
| Insulation Diameter (mm) | 5.8 |
Panduit Panduit PV10-38R-E | Loose Piece Ring Terminal | UPC - 07498336425 Data Sheets
| Selection Guides | Selection Guide - WW-TMFL05 New Convenience Pack Terminals2 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Ring Terminals, 2-PC Vinyl Insulated, #12-10 | Download and View |
Panduit Panduit PV10-38R-E | Loose Piece Ring Terminal | UPC - 07498336425 Environmental Information
| Panduit's RoHS Statement | Download and View |
