Panduit PV10-38RB-2K | Reel Smart Ring Terminal, Yellow, Vinyl, 10-...
Description
Description
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.

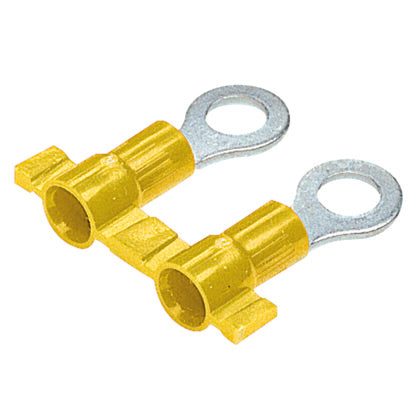

The PV10-38RB-2K Reel Smart Terminal is a continuously molded and vinyl fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from s plitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit Pan-Term Reel Smart Terminal, Type PV-RB, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 3/8 in Stud, 1.23 in Length, Insulation Support/Funnel Entry Barrel, Ring Tongue, 0.58 in W x 0.03 in THK Tongue, 600 VAC, 11/32 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PV10-38RB-2K - Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Maximum insulation temperature 221F (105C)
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV10-38RB-2K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-38RB-2K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 10 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 11/32 |
| Wire Strip Length (mm) | 8.7 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498380364 |
Panduit - PV10-38RB-2K - Videos
| Panduit PV10-38RB-2K Video 1 | Click to View |
|---|
