Brand: Panduit
|
SKU:
PAN-PV10-38RX-D
Panduit PV10-38RX-D | Loose Piece Ring Terminal | UPC - 07498380179
Regular price
$208.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-38RX-D | Loose Piece Ring Terminal | UPC - 07498380179
Regular price
$208.30
Unit price
Brand: Panduit
|
SKU:
PAN-PV10-38RX-D
Regular price
$208.30
Unit price
Shipping calculated at checkout.
Description
Description

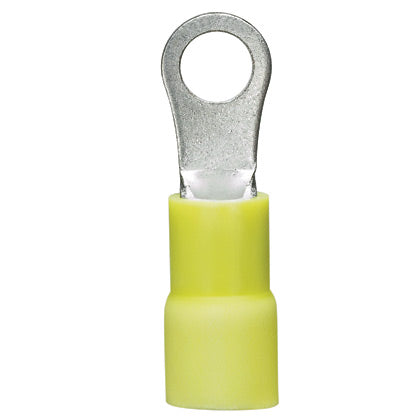

Ring Terminal, 12 – 10 AWG, 3/8" stud size, vinyl insulated, expanded insulation for large wire O.D., bulk package.
Panduit PV10-38RX-D | Loose Piece Ring Terminal | UPC - 07498380179 Key Specs
| Stud Hole Size (In.) | 39/100 |
| Stud Hole Size (mm) | 9.9 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 300 |
| Maximum Voltage (kV) | 0.3 |
Panduit PV10-38RX-D | Loose Piece Ring Terminal | UPC - 07498380179 Data Sheets
| Part Drawings | Part Drawing - PDF - A41271 PV10-xxRX | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV10-38RX-D | Loose Piece Ring Terminal | UPC - 07498380179 Environmental Information
| Panduit's RoHS Statement | Download and View |
