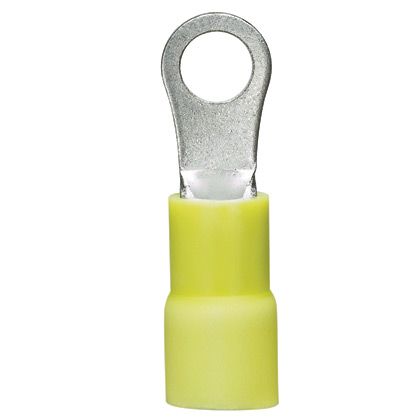

Panduit PV10-56RX-L | Pan-Term Loose Piece Ring Terminal
Description
Description
Our expanded ring terminal easily handles thicker wires due to its wider opening, providing secure, insulated connections for demanding electrical applications.
Panduit Pan-Term Terminal, Type PV-RX, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 5/16 in Stud, 1.29 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.52 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.42 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PV10-56RX-L - Features
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - PV10-56RX-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-56RX-L |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 8 |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 300 |
| Maximum Voltage (kV) | 0.3 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Length (In.) | 0.65 |
| Barrel Length (mm) | 16.4 |
| Flammability Rating | UL94V-0 |
| UPC | 07498380176 |
Panduit - PV10-56RX-L - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
