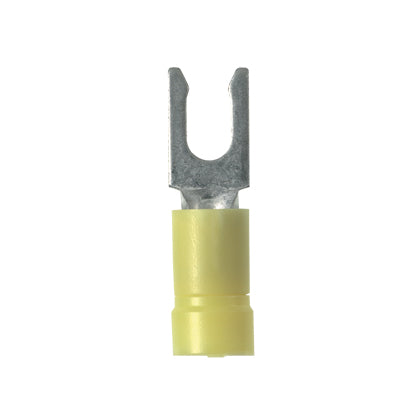

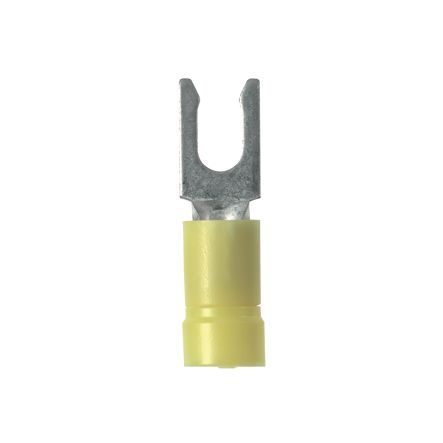

Panduit PV10-6LF-D | Pan-Term Loose Piece Terminal
Description
Description
Our one-piece, vinyl-insulated design make installations quick and easy with our locking fork terminal. Ensure a reliable connection with a secure locking mechanism.
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-LF, Stranded Copper Conductor, 12 to 10 AWG Conductor, #6 Stud, 1.03 in Length, Brazed Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.3 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 0.23 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PV10-6LF-D - Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Flange design provides extra secure connection on a variety of applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - PV10-6LF-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-6LF-D |
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498380813 |
