Brand: Panduit
|
SKU:
9787482

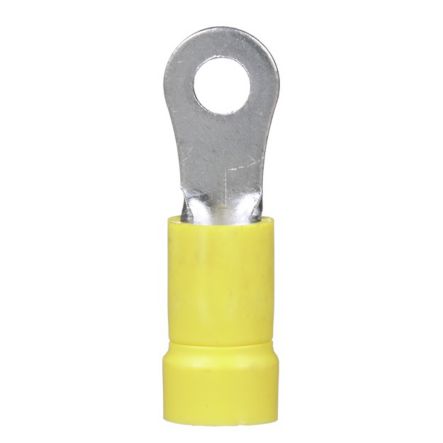

Panduit PV10-6R-L | Pan-Term PV10-6R-L Ring Terminal, Vinyl Insulated-Funnel Entry
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-6R-L | Pan-Term PV10-6R-L Ring Terminal, Vinyl Insulat...
Regular price
$1.46
Unit price
Description
Description
Panduit PV10-6R-L | Pan-Term PV10-6R-L Ring Terminal, Vinyl Insulated-Funnel Entry
Ring Terminal, 12 – 10 AWG, #6 stud size, vinyl insulated, funnel entry, standard package.
Panduit PV10-6R-L - TERMINAL - STA-KON RING TERMINAL YELLOW
Specifications
Specifications
Panduit - PV10-6R-L - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV10-6R-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-6R-L |
| Item Description | Pan-Term PV10-6R-L Ring Terminal, Vinyl Insulated-Funnel Entry |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 300 |
| Maximum Voltage (kV) | 0.3 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.3 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.23 |
| Insulation Diameter (mm) | 5.7 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Maximum Wire Insulation Diameter (mm) | 5.7 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.05 |
| Overall Length (mm) | 26.7 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Length (In.) | 0.53 |
| Tongue Length (mm) | 13.3 |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - PV10-6R-L - Package Information
| UPC | 07498380128 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0037 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0368 |
