Panduit PV10-8F-D | Pan-Term PV10-8F-D Loose Piece Terminal
Regular price
$189.46
Unit price
Brand: Panduit
|
SKU:
PAN-PV10-8F-D
Regular price
$189.46
Unit price
Description
Description

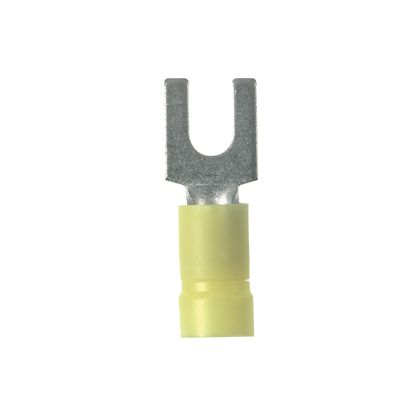

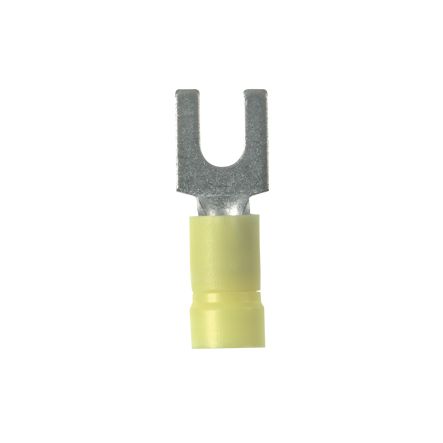

Panduit PV10-8F-D | Pan-Term PV10-8F-D Loose Piece Terminal
Fork Terminal, vinyl insulated, funnel entry, 14- 10AWG, #8 stud size, bulk package.
Panduit PV10-8F-D - TERMINAL-FORK - VINYL INSULATED FORK TERMINAL
Specifications
Specifications
Panduit - PV10-8F-D - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PV10-8F-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-8F-D |
| Item Description | Pan-Term PV10-8F-D Loose Piece Terminal |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.52 |
| Barrel Length (mm) | 13.2 |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Brazed |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Overall Length (In.) | 1.04 |
| Overall Length (mm) | 26.4 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.4 |
| Tongue Length (In.) | 0.52 |
| Tongue Length (mm) | 13.2 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.37 |
| Tongue Width (mm) | 9.4 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
Panduit - PV10-8F-D - Package Information
| UPC | 07498380413 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.0482 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
