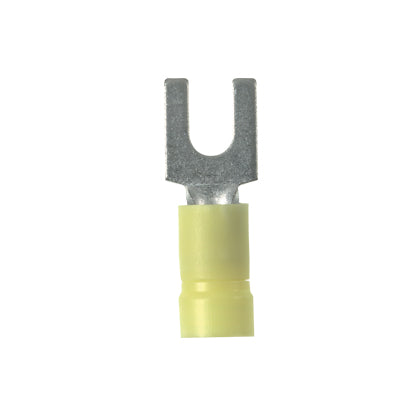

Panduit PV10-8F-E | NA | UPC - 07498336242
Regular price
$26.68
Unit price
Brand: Panduit
|
SKU:
10044862
Regular price
$26.68
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Insulated, Series: PV-F, Solid/Stranded Copper Conductor, 14 to 10 AWG Conductor, #8 Stud, 1.04 in Length, Brazed Seam Barrel, Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.225 in Dia Max Vinyl Insulation, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
- Fast and easy installation
- Insulation support
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PV10-8F-E | NA | UPC - 07498336242 Key Specs
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA Certified, UL Listed |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PV10-8F-E | NA | UPC - 07498336242 Environmental Information
| Panduit's RoHS Statement | Download and View |
