Panduit PV10-8FF-L | Pan-Term Loose Piece Forks
Description
Description
Handle electrical projects with ease with our fork terminal, its insulated connection and a strong vinyl-insulated flange for additional stability in various applications.

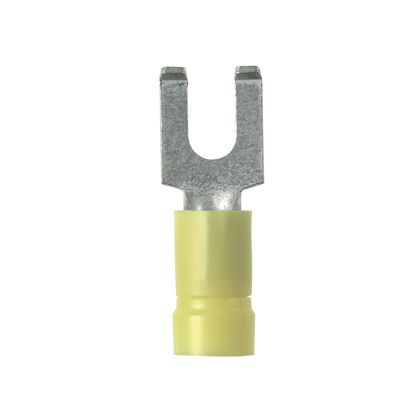

Flanged Fork Terminal, vinyl insulated, funnel entry, 14 - 10 AWG, #8 stud size.
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-FF, Stranded Copper Conductor, 14 to 10 AWG Conductor, #8 Stud, 1.03 in Length, Brazed Seam/Funnel Entry Barrel, Flanged Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 0.22 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PV10-8FF-L - Features
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Expanded entry barrel configuration
Specifications
Specifications
Panduit - PV10-8FF-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-8FF-L |
| Type | Fork Terminal |
| UNSPSC Code | 39121400 |
| Fork Type | Flanged Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498346509 |
Panduit - PV10-8FF-L - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
