Brand: Panduit
|
SKU:
10044917
Panduit PV10-8FFB-2K | Terminals on a Reel | UPC - 07498380716
Regular price
$1,127.92
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-8FFB-2K | Terminals on a Reel | UPC - 07498380716
Regular price
$1,127.92
Unit price
Description
Description

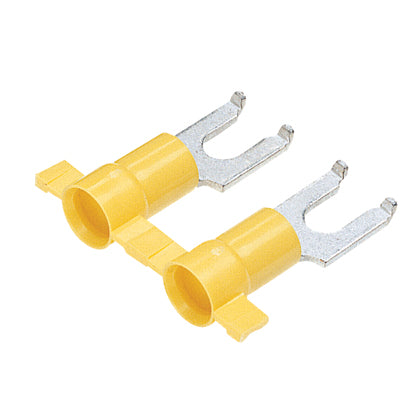

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PV-FFB, Stranded Copper Conductor, 12 to 10 AWG Conductor, #8 Stud, 1.03 in Length, Butted Seam/Funnel Entry/Insulation Support Barrel, Flanged Fork Tongue, 0.37 in W Tongue, 600 VAC, 0.34 in L Wire Strip, 0.23 in Vinyl Insulation, 221 deg F, Copper, Tin Plated, Yellow
Features + Benefits
- Locks in place for secure connection
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Fork design provides for fast and easy installation, without the need to remove fastener
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit PV10-8FFB-2K | Terminals on a Reel | UPC - 07498380716 Key Specs
| Fork Type | Flanged Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.34 |
| Wire Strip Length (mm) | 8.6 |
| Standards Met | CSA Certified-C22.2 No.65, UL Listed-UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PV10-8FFB-2K | Terminals on a Reel | UPC - 07498380716 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PNF18-6FF-3K Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41076 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PV10-8FFB-2K | Terminals on a Reel | UPC - 07498380716 Environmental Information
| Panduit's RoHS Statement | Download and View |
