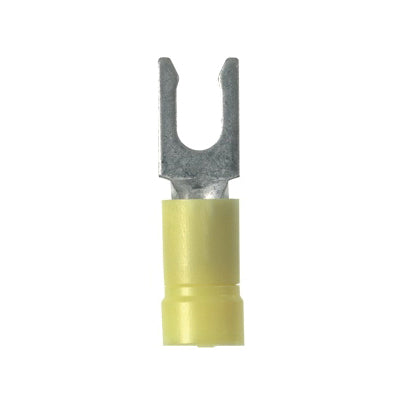

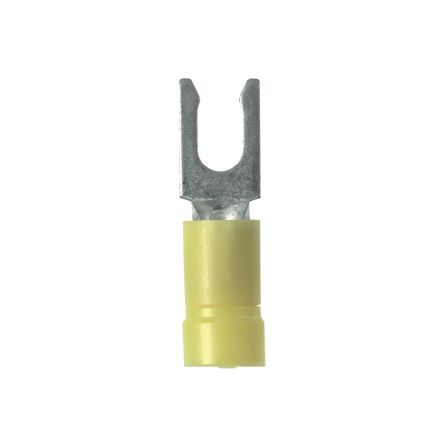

Panduit PV10-8LF-L | Pan-Term Pv10-8Lf-L Fork Terminal, Yellow, Vinyl, 10-12 Awg, #8 Stud, Pk50
The PV10-8LF-L Pan-Term Terminal is a vinyl insulated, locking fork terminal. The locking tongue design locks in place for a secure connection. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Panduit - PV10-8LF-L - Features
- Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-LF, Stranded Copper Conductor, 12 to 10 AWG Conductor, #8 Stud, 1.05 in Length, Brazed Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.3 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 0.23 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
Specifications
Specifications
Panduit - PV10-8LF-L - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PV10-8LF-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-8LF-L |
| Item Description | Pan-Term Pv10-8Lf-L Fork Terminal, Yellow, Vinyl, 10-12 Awg, #8 Stud, Pk50 |
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.52 |
| Barrel Length (mm) | 13.2 |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Brazed |
| Maximum Wire Insulation Diameter (In.) | 0.225 |
| Maximum Wire Insulation Diameter (mm) | 5.72 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Overall Length (In.) | 1.05 |
| Overall Length (mm) | 26.67 |
| Overall Width (In.) | 0.3 |
| Overall Width (mm) | 7.62 |
| Tongue Length (In.) | 0.52 |
| Tongue Length (mm) | 13.2 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.3 |
| Tongue Width (mm) | 7.6 |
| Packaging Type | Bottle |
| Product Type | Locking Fork Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| MPN: | PV10-8LF-L |
| Barrel Type: | Brazed Seam/Funnel Entry |
| Color: | Yellow |
| Conductor Size: | 12 to 10 AWG |
| Conductor Type: | Stranded Copper |
| Finish: | Tin Plated |
| Length: | 1.05 in |
| Material: | Copper |
| Series: | PV-LF |
| Specifications: | 5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 0.23 in Clearance |
| Stud Size: | #8 |
| Temperature Rating: | 221 deg F |
| Tongue Size: | 0.3 in W x 0.04 in THK |
| Tongue Type: | Locking Fork |
| Type: | Loose Piece |
| Voltage Rating: | 600 VAC |
Panduit - PV10-8LF-L - Package Information
| UPC | 07498380814 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0037 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0368 |
