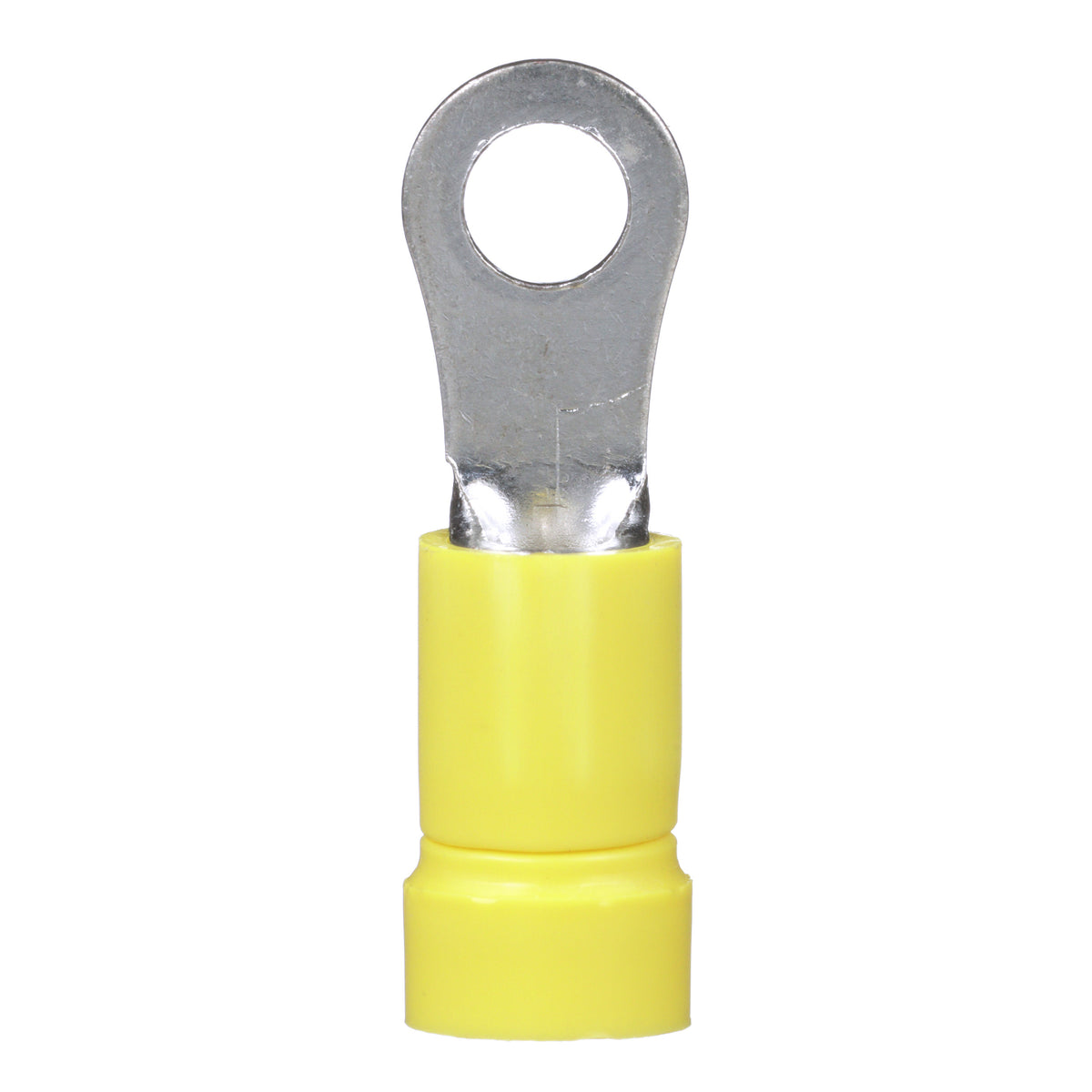

Panduit PV10-8R-D | Pan-Term Ring Terminal, Yellow, Vinyl, 10-12 AWG, PK500
Regular price
$184.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-8R-D | Pan-Term Ring Terminal, Yellow, Vinyl, 10-12 AW...
Regular price
$184.37
Unit price
Brand: Panduit
|
SKU:
PAN-PV10-8RD
Regular price
$184.37
Unit price
Shipping calculated at checkout.
Description
Description
Panduit PV10-8R-D | Pan-Term Ring Terminal, Yellow, Vinyl, 10-12 AWG, PK500
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.
Panduit Pan-Term Terminal, Type PV-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, #8 Stud, 1.05 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.31 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.31 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PV10-8R-D - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
Specifications
Specifications
Panduit - PV10-8R-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-8R-D |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498380131 |
