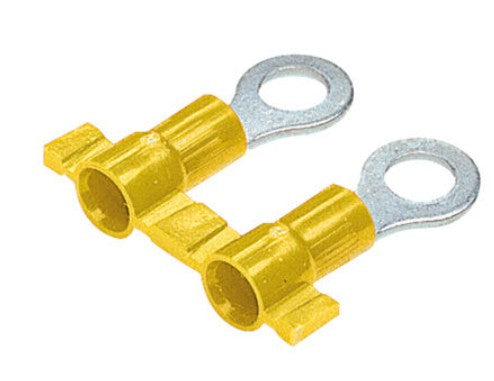

Panduit PV10-8RB-2K | Pan-Term Vinyl Insulated Ring Terminal
Regular price
$1.26
Unit price
Brand: Panduit
|
SKU:
PAN-PV10-8RB-2K-EA
Regular price
$1.26
Unit price
Description
Description
Panduit PV10-8RB-2K | Pan-Term Vinyl Insulated Ring Terminal
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.
Specifications
Specifications
Panduit - PV10-8RB-2K - Specifications
| Stud Hole Size (In.) | #8 |
|---|---|
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Vinyl |
| Copper Conductor Size | 12-10 AWG |
| Wire Size | 12-10 AWG |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 11/32 |
| Wire Strip Length (mm) | 8.7 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL 94 V-0 |
| Maximum Operating Temperature (°C) | 105 |
