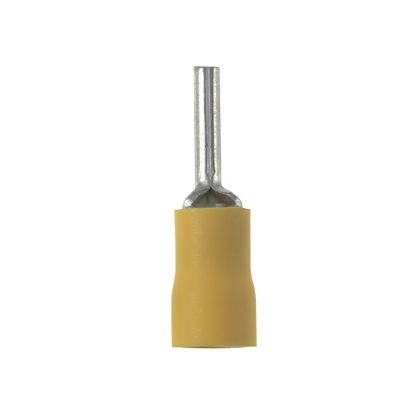

Panduit PV10-P55-DYY | Pan-Term Loose Piece terminal
Description
Description
Ensure a secure connections with our insulated pin terminal , featuring a solid pin for easy crimping, protected insulation for bends, and consistent application for reliable performance.
Pin Terminal, 12 10 AWG, vinyl insulated, .55 pin length, bulk package.
Panduit Pin Terminal, Solid/Stranded Copper Conductor, 12 to 10 AWG Conductor, 0.1 in Pin Dia, 0.55 in Pin Length, 600 VAC, Specifications: Vinyl Insulation, 221 deg F, 1.1 in Overall Length, Yellow
Panduit - PV10-P55-DYY - Features
- Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - PV10-P55-DYY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-P55-DYY |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Pin Length (In.) | 0.55 |
| Pin Length (mm) | 14 |
| Pin Diameter (In.) | 0.1 |
| Pin Diameter (mm) | 2.5 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Maximum Wire Size (AWG) | 12-10 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Brazed |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.25 |
| Maximum Wire Insulation Diameter (mm) | 6.4 |
| Overall Length (In.) | 1.1 |
| UPC | 61305675789 |
