Brand: Panduit
|
SKU:
9841851

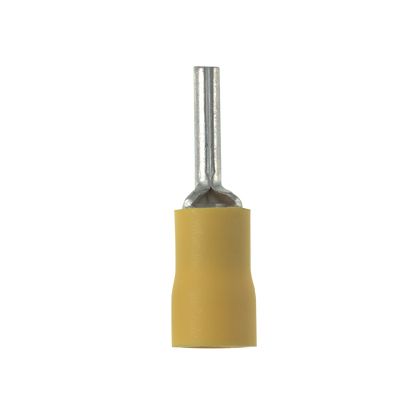

Panduit PV10-P55-LYY | Loose Piece Terminal | UPC - 61305675791
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-P55-LYY | Loose Piece Terminal | UPC - 61305675791
Regular price
$3.00
Unit price
Description
Description
Panduit Pin Terminal, Solid/Stranded Copper Conductor, 12 to 10 AWG Conductor, 0.1 in Pin Dia, 0.55 in Pin Length, 600 VAC, Specifications: Vinyl Insulation, 221 deg F, 1.1 in Overall Length, Yellow
Features + Benefits
- Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PV10-P55-LYY Key Specs
| Pin Length (In.) | 0.55 |
| Pin Length (mm) | 14 |
| Pin Diameter (In.) | 0.1 |
| Pin Diameter (mm) | 2.5 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Brazed |
| Maximum Wire Insulation Diameter (In.) | 0.25 |
| Maximum Wire Insulation Diameter (mm) | 6.4 |
| Overall Length (In.) | 1.1 |
| Overall Length (mm) | 27.9 |
| Sub Brand | Pan-Term |
| Product Type | Loose Piece Terminal |
| For Use With | CT-100, CT-260, CT-1550, CT-1551, CT-2500/L (CT-2550CH), CT-2300/ST (CD-550), and UP14ZLW (CD-550) |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Part Features | Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection Insulation support helps to prevent wire damage in bending applications Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit PV10-P55-LYY Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-P47-CY Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Pin Terminal, Vinyl Insulated, Funnel Entry | Download and View |
| Videos | Success Depends on the Crimp Training Video 16:9 BS10-D | Download and View |
