Panduit PV12-10HDR-D | Pan-Term Loose Piece Ring Terminal
Description
Description
With extra-thick construction and insulated support for long-lasting performance, our ring terminal creates a strong and stable connection.

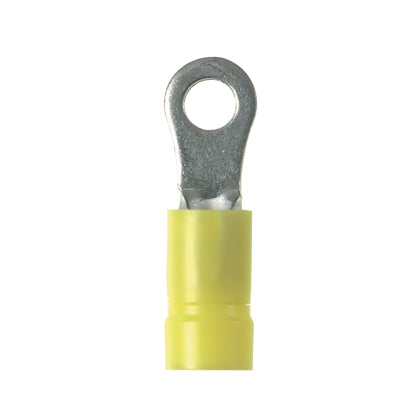

Ring Terminal, 16 " 12 AWG, #10 stud size, heavy duty, vinyl insulated, funnel entry, bulk package.
Panduit Pan-Term Terminal, Type PV-HDR Heavy-Duty, Stranded Conductor, 16 to 12 AWG Conductor, #10 Stud, 1.08 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.37 in W x 0.05 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.33 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PV12-10HDR-D - Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - PV12-10HDR-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV12-10HDR-D |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 12 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 12 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Length (In.) | 0.54 |
| Barrel Length (mm) | 13.7 |
| CSA Temperature Rating (°C) | 105 |
| UPC | 07498380257 |
