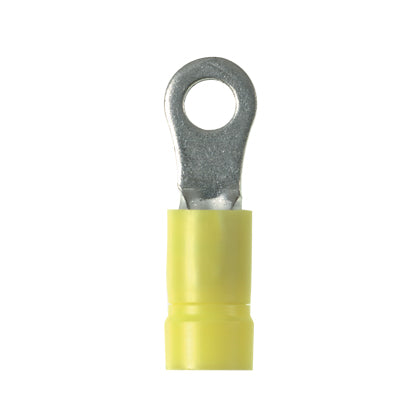

Panduit PV12-14HDR-L | Loose Piece Ring Terminal | UPC - 07498380258
Regular price
$3.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV12-14HDR-L | Loose Piece Ring Terminal | UPC - 07498380258
Regular price
$3.45
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-HDR Heavy-Duty, Stranded Conductor, 16 to 12 AWG Conductor, 1/4 in Stud, 1.23 in Length, Brazed Seam/Funnel Entry/Serrated Barrel, Ring Tongue, 0.52 in W x 0.05 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.42 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
Panduit PV12-14HDR-L Key Specs
| Stud Hole Size (In.) | 27/100 |
| Stud Hole Size (mm) | 6.8 |
| Stud Size | 1/4" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG STR) | #12 |
| Maximum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | #12 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PV12-14HDR-L Data Sheets
| Catalogs | StrongHold Electrical/Network Supports and Fasteners: CMCB02--SA-2018-ENG | Download and View |
