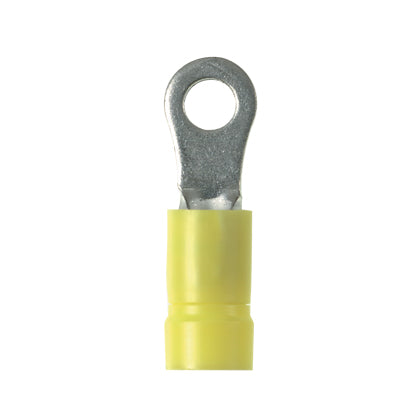

Panduit PV12-38HDR-L | Ring Terminal | UPC - 07498380262
Regular price
$65.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV12-38HDR-L | Ring Terminal | UPC - 07498380262
Regular price
$65.49
Unit price
Brand: Panduit
|
SKU:
PAN-PV12-38HDR-L
Regular price
$65.49
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Terminal, Type PV-HDR Heavy-Duty, Stranded Conductor, 16 to 12 AWG Conductor, 3/8 in Stud, 1.31 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.58 in W x 0.05 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.46 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
Panduit PV12-38HDR-L | Ring Terminal | UPC - 07498380262 Key Specs
| Stud Hole Size (In.) | 2/5 |
| Stud Hole Size (mm) | 10.2 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #12 |
| Maximum Copper Conductor Size (AWG STR) | #12 |
| Maximum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | #12 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PV12-38HDR-L | Ring Terminal | UPC - 07498380262 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV12-6HDR-L Product page | Download and View |
| Part Drawings | Heavy Duty Ring Terminals-A41281 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV12-38HDR-L | Ring Terminal | UPC - 07498380262 Environmental Information
| Panduit's RoHS Statement | Download and View |
