Brand: Panduit
|
SKU:
10044868

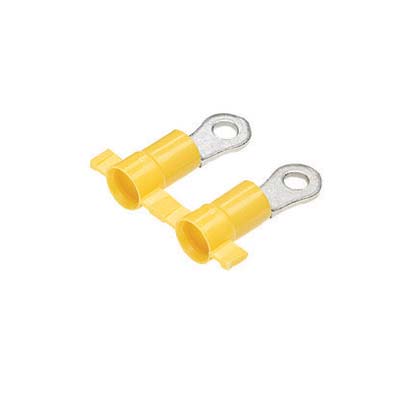

Panduit PV12-38HDRB-2K | Ring Terminal | UPC - 07498380691
Regular price
$1,404.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV12-38HDRB-2K | Ring Terminal | UPC - 07498380691
Regular price
$1,404.35
Unit price
Description
Description
Panduit Pan-Term Reel Smart Terminal, Type PV-HDR Heavy-Duty, Solid/Stranded Conductor, 16 to 12 AWG Conductor, 3/8 in Stud, 1.3 in Length, Butted Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.58 in W x 0.05 in THK Tongue, 600 VAC, 221 deg F, Copper, Tin Plated, Yellow
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Panduit Panduit PV12-38HDRB-2K | Ring Terminal | UPC - 07498380691 Key Specs
| Stud Hole Size (In.) | 39/100 |
| Stud Hole Size (mm) | 9.9 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #12 |
| Maximum Copper Conductor Size (AWG STR) | #12 |
| Maximum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | #12 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit Panduit PV12-38HDRB-2K | Ring Terminal | UPC - 07498380691 Environmental Information
| Panduit's RoHS Statement | Download and View |
