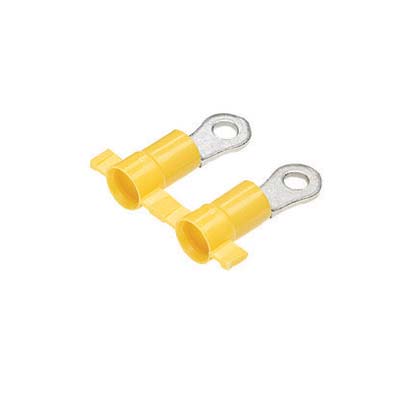

Panduit PV12-56HDRB-2K | Ring Terminal | UPC - 07498380690
Regular price
$1,416.19
Unit price
Description
Description
Panduit Pan-Term Terminal, Heavy Duty, Series: PN-HDR, Solid/Stranded Conductor, 16 to 12 AWG Conductor, 5/16 in Stud, 1.23 in Length, Butted Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.52 in W x 0.05 in THK Tongue, 600 VAC, Specifications: Vinyl Insulation, Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Copper, TiN Coated, Yellow
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Manufactured from stock 56% thicker than a standard 16 to 14 AWG terminal for use in heavy duty application
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
Panduit Panduit PV12-56HDRB-2K | Ring Terminal | UPC - 07498380690 Key Specs
| Stud Hole Size (In.) | 33/100 |
| Stud Hole Size (mm) | 8.4 |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #12 |
| Maximum Copper Conductor Size (AWG STR) | #12 |
| Maximum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | #12 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 1.3 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | CSA Listed: LR31212, UL Listed: UL 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PV12-56HDRB-2K | Ring Terminal | UPC - 07498380690 Environmental Information
| Panduit's RoHS Statement | Download and View |
