Brand: Panduit
|
SKU:
10044871

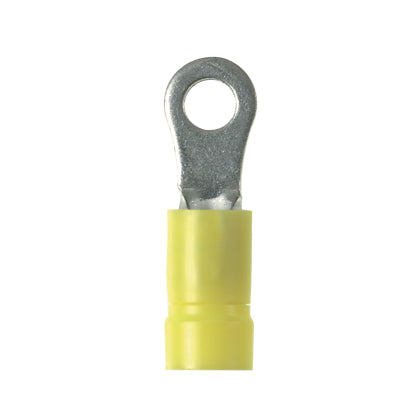

Panduit PV12-6HDR-D | Ring Terminal | UPC - 07498380253
Regular price
$188.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV12-6HDR-D | Ring Terminal | UPC - 07498380253
Regular price
$188.00
Unit price
Description
Description
Panduit Pan-Term Ring Terminal, Heavy Duty Insulated, Series: PV-HDR, Stranded Conductor, 16 to 12 AWG Conductor, #6 Stud, 1.05 in Length, Brazed Seam/Insulation Support Barrel, Ring Tongue, 0.31 in W x 0.05 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.35 in Clearance, 0.225 in Dia Max Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Copper, Tin Plated, Yellow
- Manufactured from stock 56% thicker than a standard 16 to 14 AWG terminal for use in heavy duty application
- Insulation housing is marked with "HDR" to signify heavy duty ring
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
Panduit Panduit PV12-6HDR-D | Ring Terminal | UPC - 07498380253 Key Specs
| Stud Hole Size (In.) | 3/20 |
| Stud Hole Size (mm) | 3.8 |
| Stud Size | #6 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #12 |
| Maximum Copper Conductor Size (AWG STR) | #12 |
| Maximum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | #12 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 1.3 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | CSA Listed: LR31212, UL Listed: UL 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PV12-6HDR-D | Ring Terminal | UPC - 07498380253 Environmental Information
| Panduit's RoHS Statement | Download and View |
