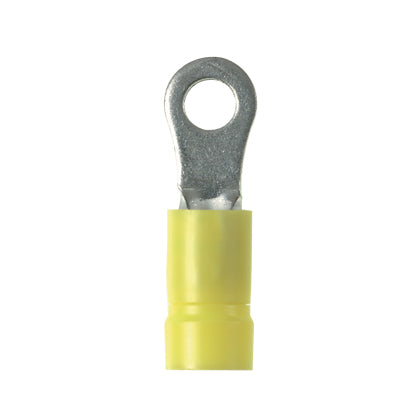

Panduit PV12-8HDR-D | Ring Terminal | UPC - 07498380255
Regular price
$151.52
Unit price
Brand: Panduit
|
SKU:
PAN-PV12-8HDR-D
Regular price
$151.52
Unit price
Description
Description
Ring Terminal, 16 – 12 AWG, #8 stud size, heavy duty, vinyl insulated, funnel entry, bulk package.
Panduit PV12-8HDR-D | Ring Terminal | UPC - 07498380255 Key Specs
| Stud Hole Size (In.) | 1/6 |
| Stud Hole Size (mm) | 4.3 |
| Stud Size | #8 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #12 |
| Maximum Copper Conductor Size (AWG STR) | #12 |
| Maximum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | #12 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 1.3 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | CSA Listed: LR31212, UL Listed: UL 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PV12-8HDR-D | Ring Terminal | UPC - 07498380255 Data Sheets
| Part Drawings | Heavy Duty Ring Terminals-A41281 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV12-8HDR-D | Ring Terminal | UPC - 07498380255 Environmental Information
| Panduit's RoHS Statement | Download and View |
