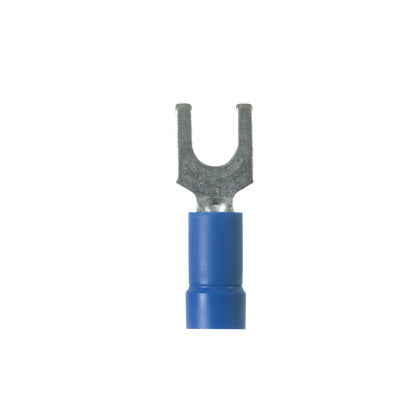

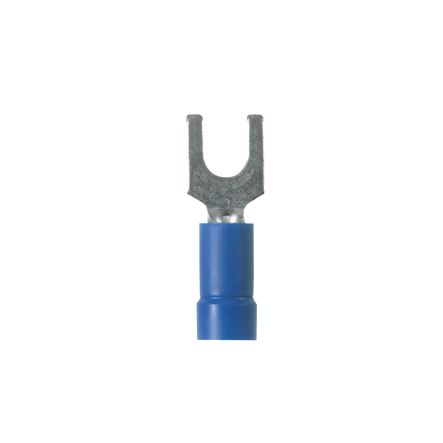

Panduit PV14-10F-M | Pan-Term Fork Terminal, Blue, Vinyl, 14-16 AWG, #10 Stud, PK1000
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-10F-M | Pan-Term Fork Terminal, Blue, Vinyl, 14-16 AWG...
Description
Description
Our fork terminal design ensures consistent quality and protects wires during installation for a reliable, long-lasting connection.
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-F, Stranded Copper Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.92 in Length, Brazed Seam/Funnel Entry Barrel, Fork Tongue, 0.34 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.17 in Dia Vinyl Insulation, 0.24 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Panduit - PV14-10F-M - Features
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - PV14-10F-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV14-10F-M |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498380411 |
