Brand: Panduit
|
SKU:
10044918

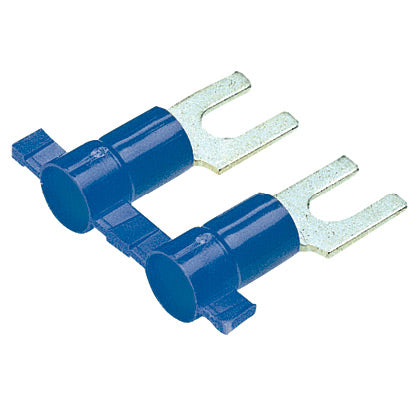

Panduit PV14-10FB-3K | Terminals on a Reel | UPC - 07498380446
Regular price
$1,101.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-10FB-3K | Terminals on a Reel | UPC - 07498380446
Regular price
$1,101.66
Unit price
Description
Description
Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PV-FB, Stranded Copper Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.86 in Length, Butted Seam/Funnel Entry Barrel, Fork Tongue, 0.34 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.17 in Dia Vinyl Insulation, 0.24 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PV14-10FB-3K | Terminals on a Reel | UPC - 07498380446 Key Specs
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.34 |
| Wire Strip Length (mm) | 8.6 |
| Standards Met | CSA Certified-C22.2 No.65, UL Listed-UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PV14-10FB-3K | Terminals on a Reel | UPC - 07498380446 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-6FB-3K Product Page | Download and View |
| Part Drawings | Fork Terminals, 2 PC. Vinyl Insulated, #16-14, Continuous Reel | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PV14-10FB-3K | Terminals on a Reel | UPC - 07498380446 Environmental Information
| Panduit's RoHS Statement | Download and View |
