Brand: Panduit
|
SKU:
PAN-PV14-10FF-C
Panduit PV14-10FF-C | Loose Piece Terminal | UPC - 07498346507
Regular price
$98.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-10FF-C | Loose Piece Terminal | UPC - 07498346507
Regular price
$98.95
Unit price
Brand: Panduit
|
SKU:
PAN-PV14-10FF-C
Regular price
$98.95
Unit price
Shipping calculated at checkout.
Description
Description

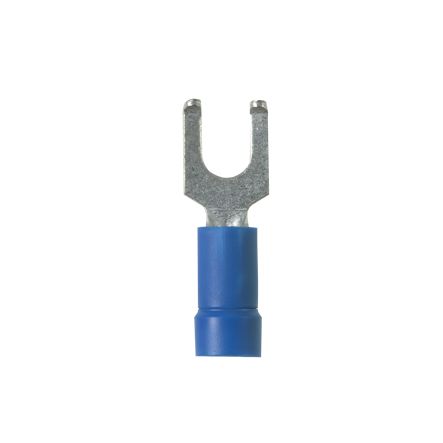

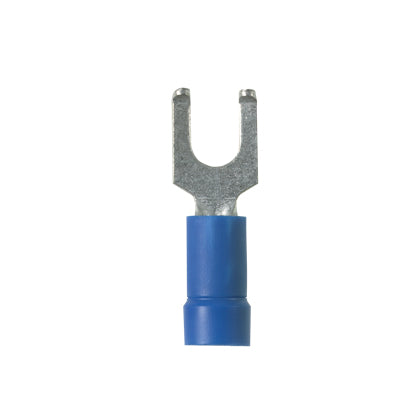

Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-FF, Stranded Copper Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.94 in Length, Brazed Seam/Funnel Entry Barrel, Flanged Fork Tongue, 0.35 in W x 0.032 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.165 in Dia Vinyl Insulation, 0.23 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PV14-10FF-C | Loose Piece Terminal | UPC - 07498346507 Key Specs
| Fork Type | Flanged Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA Certified-C22.2 No.65, UL Listed-UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PV14-10FF-C | Loose Piece Terminal | UPC - 07498346507 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PN18-6FF-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41573 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV14-10FF-C | Loose Piece Terminal | UPC - 07498346507 Environmental Information
| Panduit's RoHS Statement | Download and View |
