Brand: Panduit
|
SKU:
PAN-PV14-10FNB-3K

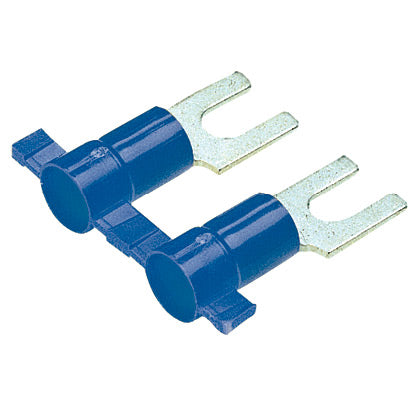

Panduit PV14-10FNB-3K | Terminals on a Reel | UPC - 07498380369
Regular price
$1,156.68
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-10FNB-3K | Terminals on a Reel | UPC - 07498380369
Regular price
$1,156.68
Unit price
Brand: Panduit
|
SKU:
PAN-PV14-10FNB-3K
Regular price
$1,156.68
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: P-FNB, Stranded Copper Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.86 in Length, Butted Seam/Funnel Entry/Insulation Support Barrel, Narrow Fork Tongue, 0.31 in W Tongue, 600 VAC, 0.34 in L Wire Strip, 0.17 in Vinyl Insulation, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
- Non-expanded insulation
Panduit PV14-10FNB-3K | Terminals on a Reel | UPC - 07498380369 Key Specs
| Fork Type | Narrow Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.34 |
| Wire Strip Length (mm) | 8.6 |
| Standards Met | CSA Certified-C22.2 No.65, UL Listed-UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PV14-10FNB-3K | Terminals on a Reel | UPC - 07498380369 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-6FB-3K Product Page | Download and View |
| Part Drawings | Fork Terminals, 2 PC. Vinyl Insulated, #16-14, Continuous Reel | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV14-10FNB-3K | Terminals on a Reel | UPC - 07498380369 Environmental Information
| Panduit's RoHS Statement | Download and View |
