Brand: Panduit
|
SKU:
10044851

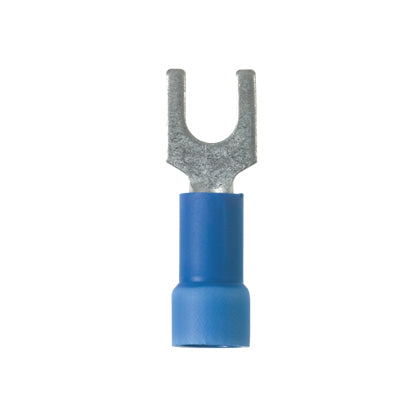

Panduit PV14-10FX-C | Loose Piece Terminal | UPC - 07498380428
Regular price
$116.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-10FX-C | Loose Piece Terminal | UPC - 07498380428
Regular price
$116.32
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-FX, Stranded Copper Conductor, 18 to 14 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Funnel Entry Barrel, Fork Tongue, 0.34 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.2 in Dia Vinyl Insulation, 0.22 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Snap-in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PV14-10FX-C | Loose Piece Terminal | UPC - 07498380428 Key Specs
| Minimum Operating Temperature (°C) | 75 |
| Minimum Operating Temperature (°F) | 167 |
| Minimum Voltage (V) | 600 |
| Minimum Voltage (kV) | 0.6 |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
Panduit Panduit PV14-10FX-C | Loose Piece Terminal | UPC - 07498380428 Environmental Information
| Panduit's RoHS Statement | Download and View |
