Description
Description

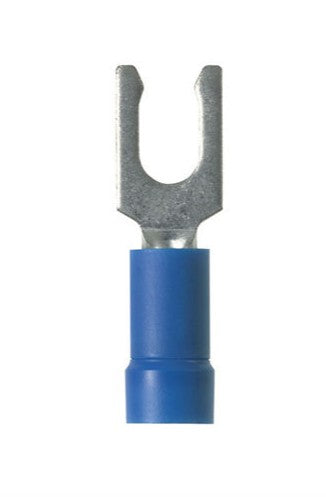

Panduit PV14-10LFN-C | Pan-Term Vinyl-Insulated Narrow Locking Fork Terminal
Handle tight spaces with maximum security with our locking fork terminal, a narrow design for crowded control panels, and secure locking mechanism for vibration-resistant connections.
Specifications
Specifications
Panduit - PV14-10LFN-C - Specifications
| Fork Type | Locking Fork Narrow |
|---|---|
| Insulation Material | Vinyl |
| Copper Conductor Size | 18-14 AWG |
| Wire Size | 18-14 AWG |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.48 |
| Barrel Length (mm) | 12.2 |
| Flammability Rating | UL 94 V-0 |
