Brand: Panduit
|
SKU:
PAN-PV14-10LFN-M
Panduit PV14-10LFN-M | Loose Piece Terminal | UPC - 07498380876
Regular price
$296.25
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-10LFN-M | Loose Piece Terminal | UPC - 07498380876
Regular price
$296.25
Unit price
Brand: Panduit
|
SKU:
PAN-PV14-10LFN-M
Regular price
$296.25
Unit price
Shipping calculated at checkout.
Description
Description

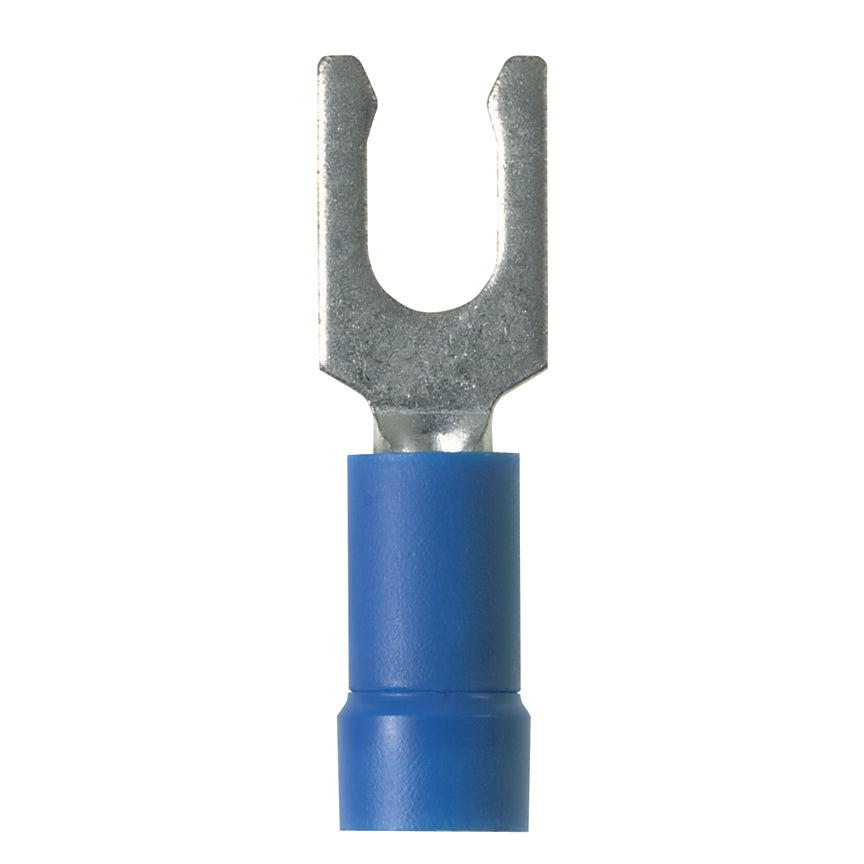

Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-LFN, Stranded Copper Conductor, 18 to 14 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Funnel Entry Barrel, Narrow Locking Fork Tongue, 0.29 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.17 in Dia Vinyl Insulation, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
Panduit PV14-10LFN-M | Loose Piece Terminal | UPC - 07498380876 Key Specs
| Fork Type | Locking Fork Narrow |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA Certified-C22.2 No.65, UL Listed-UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PV14-10LFN-M | Loose Piece Terminal | UPC - 07498380876 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | #16-14 Barrel Funneled Vinyl Insulated Locking Fork, .175 [4.45] Max. Wire Insulation Diameter | Download and View |
Panduit PV14-10LFN-M | Loose Piece Terminal | UPC - 07498380876 Environmental Information
| Panduit's RoHS Statement | Download and View |
