Brand: Panduit
|
SKU:
10044789

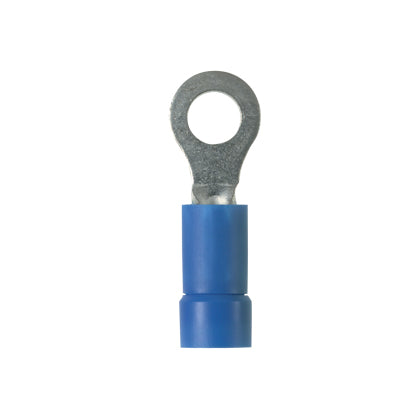

Panduit PV14-10R-E | Loose Piece | UPC - 07498336244
Regular price
$19.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-10R-E | Loose Piece | UPC - 07498336244
Regular price
$19.65
Unit price
Description
Description
Panduit Pan-Term Ring Terminal, Insulated, Series: PV-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.92 in Length, Brazed Seam/Insulation Support Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 1/4 in Clearance, Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Copper, Tin Plated, Blue
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit PV14-10R-E | Loose Piece | UPC - 07498336244 Key Specs
| Stud Hole Size (In.) | 1/5 |
| Stud Hole Size (mm) | 5.1 |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA Listed: LR31212, UL Listed: UL 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PV14-10R-E | Loose Piece | UPC - 07498336244 Environmental Information
| Panduit's RoHS Statement | Download and View |
