Panduit PV14-10R-M | Pan-Term Ring Terminal, Blue, Vinyl, 14-16 AWG...
Description
Description
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.

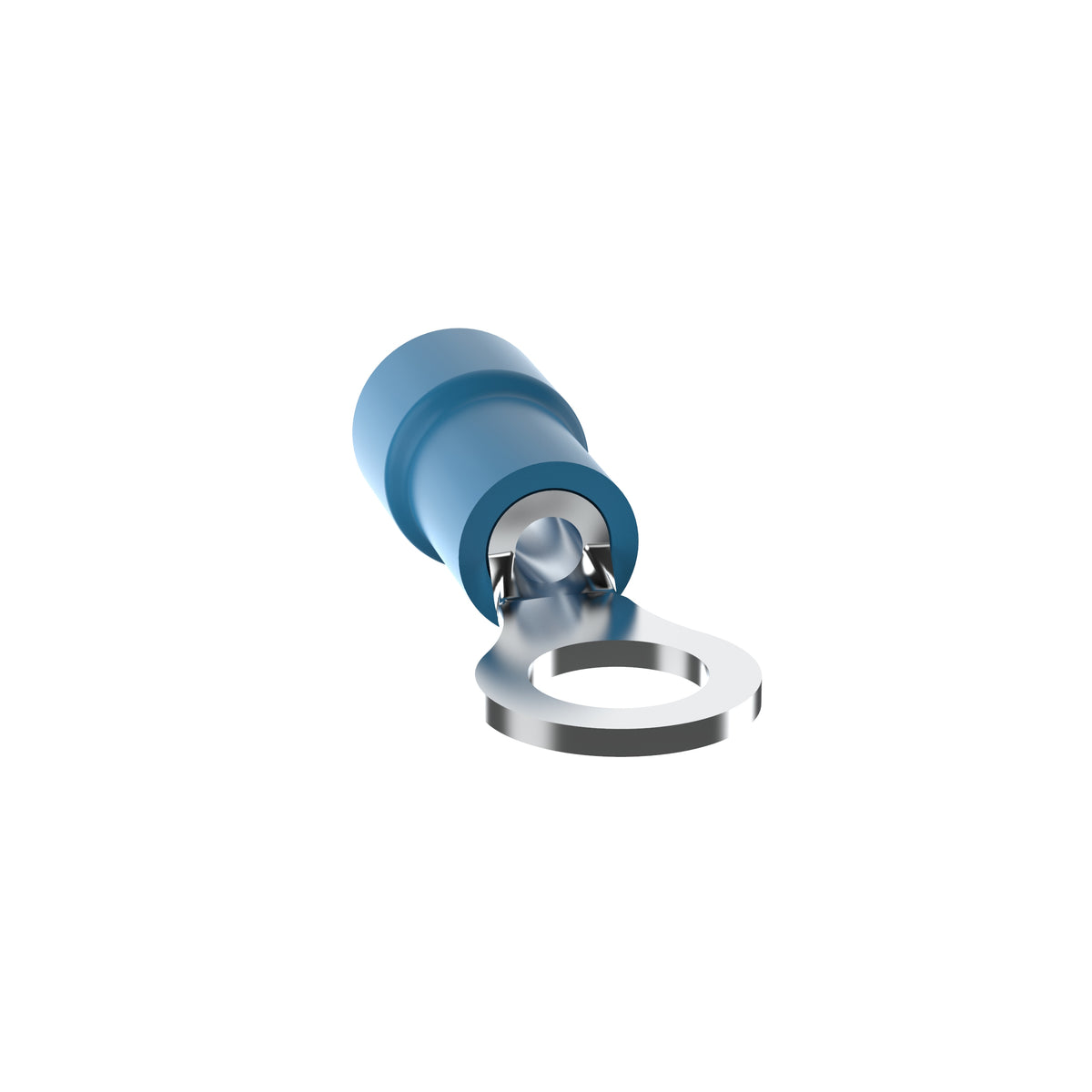

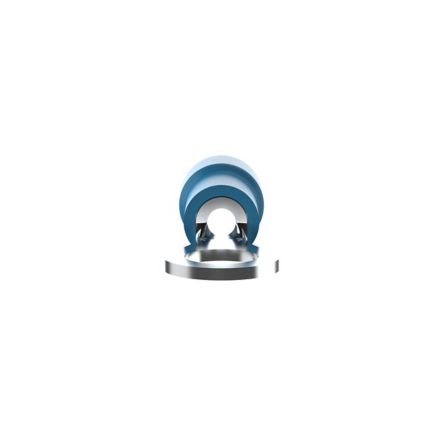

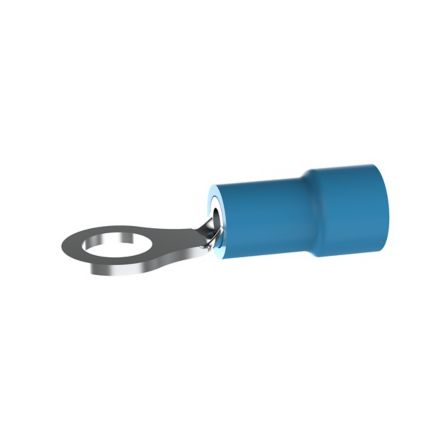

The PV14-10R-M Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insula tion provides protection and strain relief when crimped.
Panduit Pan-Term Ring Terminal, Insulated, Series: PV-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.92 in Length, Brazed Seam/Insulation Support Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 1/4 in Clearance, Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Copper, Tin Plated, Blue
Panduit - PV14-10R-M - Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV14-10R-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV14-10R-M |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498380121 |
