Brand: Panduit
|
SKU:
PV14-10RB-RAW

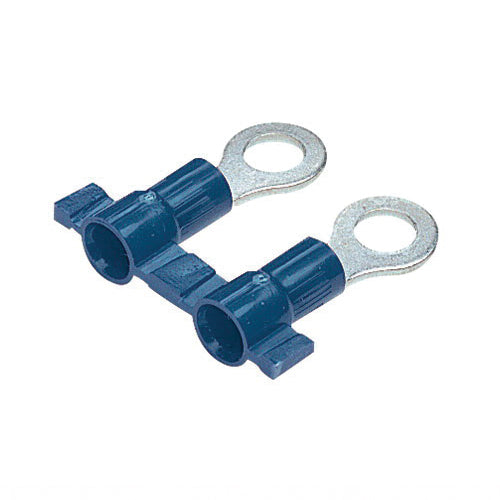

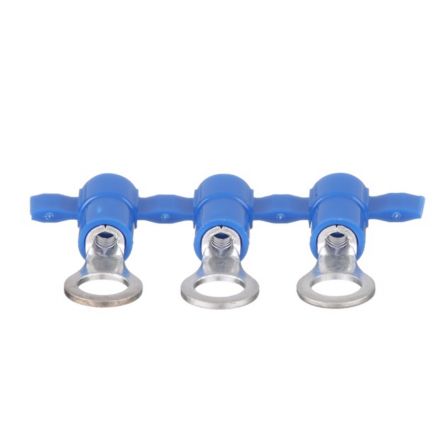

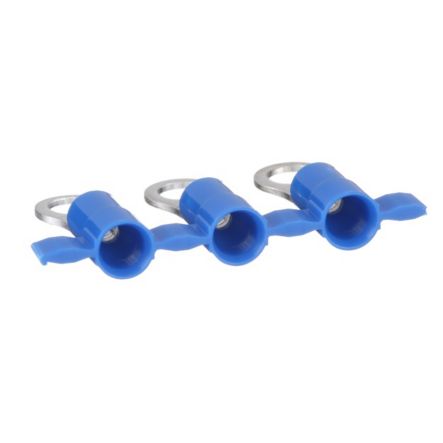

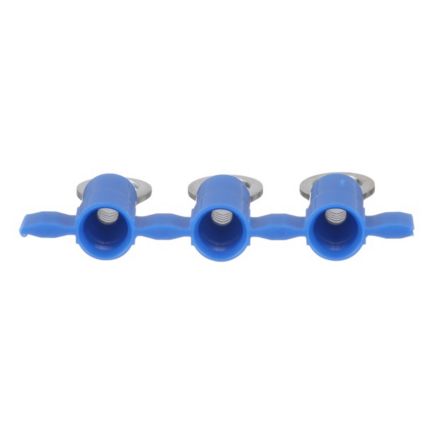

Panduit PV14-10RB-3K | Reel Smart Pv14-10Rb-3K Ring Terminal, Blue, Vinyl, 14-16 Awg, #10 Stud, Pk3000
Regular price
$0.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-10RB-3K | Reel Smart Pv14-10Rb-3K Ring Terminal, Blue,...
Regular price
$0.40
Unit price
Description
Description
Panduit PV14-10RB-3K | Reel Smart Pv14-10Rb-3K Ring Terminal, Blue, Vinyl, 14-16 Awg, #10 Stud, Pk3000
The PV14-10RB-3K Reel Smart Terminal is a continuously molded and fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit - PV14-10RB-3K - Features
- Panduit Pan-Term Reel Smart Ring Terminal, Insulated, Series: PV-RB, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.86 in Length, Insulation Support Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 1/4 in Clearance, 0.17 in Dia Max Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Copper, Tin Plated, Blue
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
Specifications
Specifications
Panduit - PV14-10RB-3K - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV14-10RB-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV14-10RB-3K |
| Item Description | Reel Smart Pv14-10Rb-3K Ring Terminal, Blue, Vinyl, 14-16 Awg, #10 Stud, Pk3000 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Maximum Wire Insulation Diameter (mm) | 4.3 |
| Sub Brand | Reel Smart |
| Overall Length (In.) | 0.86 |
| Overall Length (mm) | 21.8 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Reel |
| Product Type | Ring Terminal |
| For Use With | Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator |
| Part Features | • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications |
| MPN: | PV14-10RB-3K |
| Barrel Type: | Insulation Support |
| Color: | Blue |
| Conductor Size: | 16 to 14 AWG |
| Conductor Type: | Solid/Stranded |
| Finish: | Tin Plated |
| Length: | 0.86 in |
| Material: | Copper |
| Series: | PV-RB |
| Specifications: | 1/4 in L Wire Strip, 1/4 in Clearance, 0.17 in Dia Max Vinyl Insulation, Funnel Entry Barrel Configuration |
| Stud Size: | #10 |
| Temperature Rating: | 221 deg F |
| Tongue Size: | 0.31 in W x 0.03 in THK |
| Tongue Type: | Ring |
| Type: | Insulated |
| Voltage Rating: | 600 VAC |
Panduit - PV14-10RB-3K - Package Information
| UPC | 07498380357 |
|---|---|
| Standard Package Quantity | 3000 |
| Standard Package Volume (cf) | 0.9208 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - PV14-10RB-3K - Videos
| Video 1 | Click to View |
|---|
