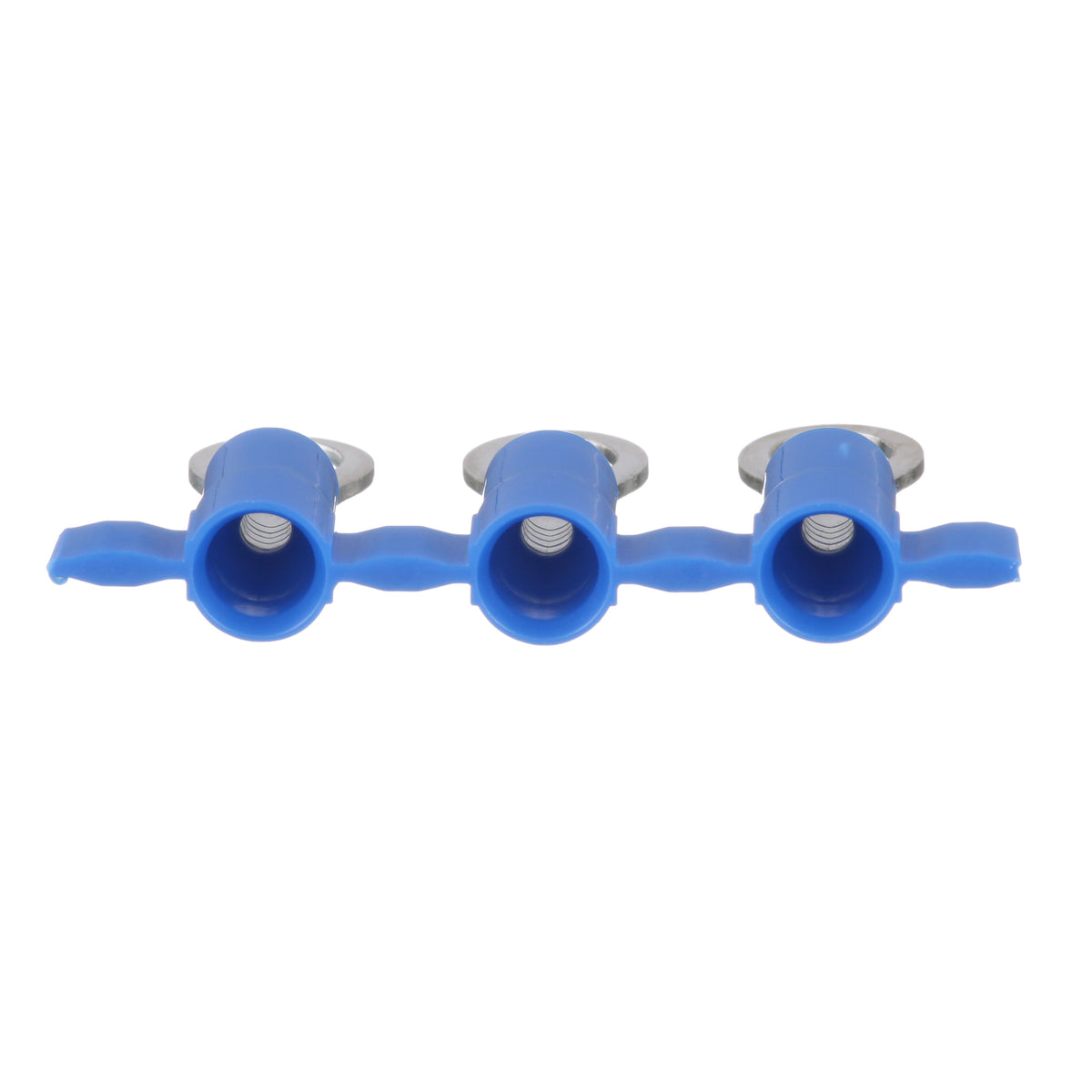

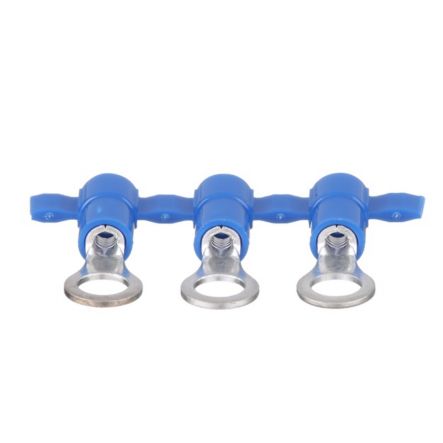

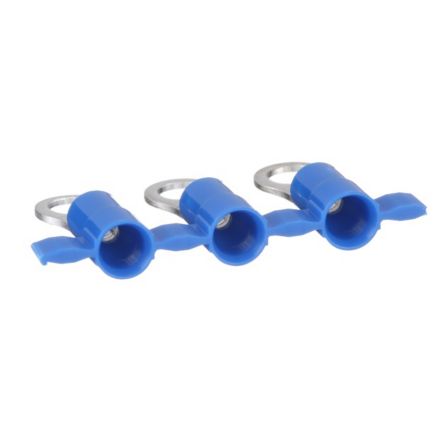

Panduit PV14-10RB-3K | Reel Smart Ring Terminal, Blue, Vinyl, 14-16...
Description
Description
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.
Ring Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 16 - 14 AWG wire range, #10 stud size.
Panduit Pan-Term Reel Smart Ring Terminal, Insulated, Series: PV-RB, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.86 in Length, Insulation Support Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 1/4 in Clearance, 0.17 in Dia Max Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Copper, Tin Plated, Blue
Panduit - PV14-10RB-3K - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Maximum insulation temperature 221F (105C)
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV14-10RB-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV14-10RB-3K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498380357 |
