Panduit PV14-12R-L | Pan-Term PV14-12R-L Loose Piece Ring Terminal
Regular price
$84.17
Unit price
Description
Description

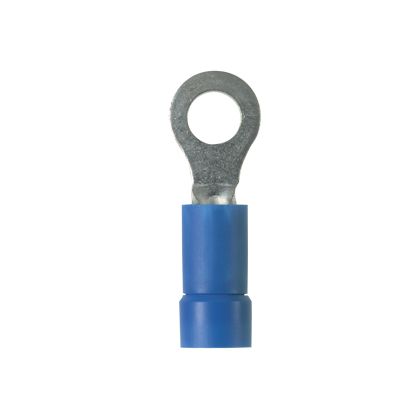

Panduit PV14-12R-L | Pan-Term PV14-12R-L Loose Piece Ring Terminal
Ring Terminal, 16 – 14 AWG, 1/2" stud size, vinyl insulated, funnel entry.
Specifications
Specifications
Panduit - PV14-12R-L - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV14-12R-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV14-12R-L |
| Item Description | Pan-Term PV14-12R-L Loose Piece Ring Terminal |
| Stud Hole Size (In.) | 1/2" |
| Stud Hole Size (mm) | 12 |
| Stud Size | 1/2" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.71 |
| Barrel Length (mm) | 18 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.17 |
| Insulation Diameter (mm) | 4.3 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Maximum Wire Insulation Diameter (mm) | 4.3 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.42 |
| Overall Length (mm) | 36.1 |
| Overall Width (In.) | 0.72 |
| Overall Width (mm) | 18.3 |
| Tongue Length (In.) | 0.71 |
| Tongue Length (mm) | 18 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.72 |
| Tongue Width (mm) | 18.3 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Brand Name - PV14-12R-L - Package Information
| UPC | 07498391289 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0099 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0985 |
