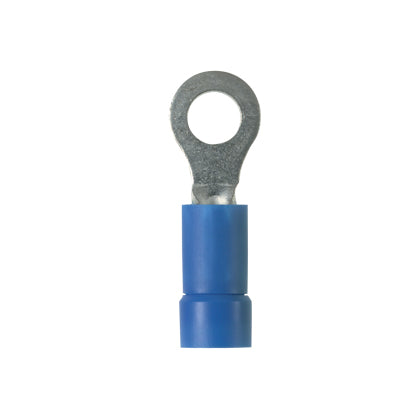

Panduit PV14-14R-E | Loose Piece Ring Terminal | UPC - 07498336377
Regular price
$96.05
Unit price
Brand: Panduit
|
SKU:
10044804
Regular price
$96.05
Unit price
Description
Description
Ring Terminal, 16 – 14 AWG, 1/4" stud size, vinyl insulated, funnel entry, convenience package.
Panduit Panduit PV14-14R-E | Loose Piece Ring Terminal | UPC - 07498336377 Key Specs
| Stud Hole Size (mm) | 6 |
| Stud Size | 1/4" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit Panduit PV14-14R-E | Loose Piece Ring Terminal | UPC - 07498336377 Data Sheets
| Selection Guides | Selection Guide - WW-TMFL05 New Convenience Pack Terminals2 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PV14-14R-E | Loose Piece Ring Terminal | UPC - 07498336377 Environmental Information
| Panduit's RoHS Statement | Download and View |
