Brand: Panduit
|
SKU:
PAN-PV14-38RB-2K

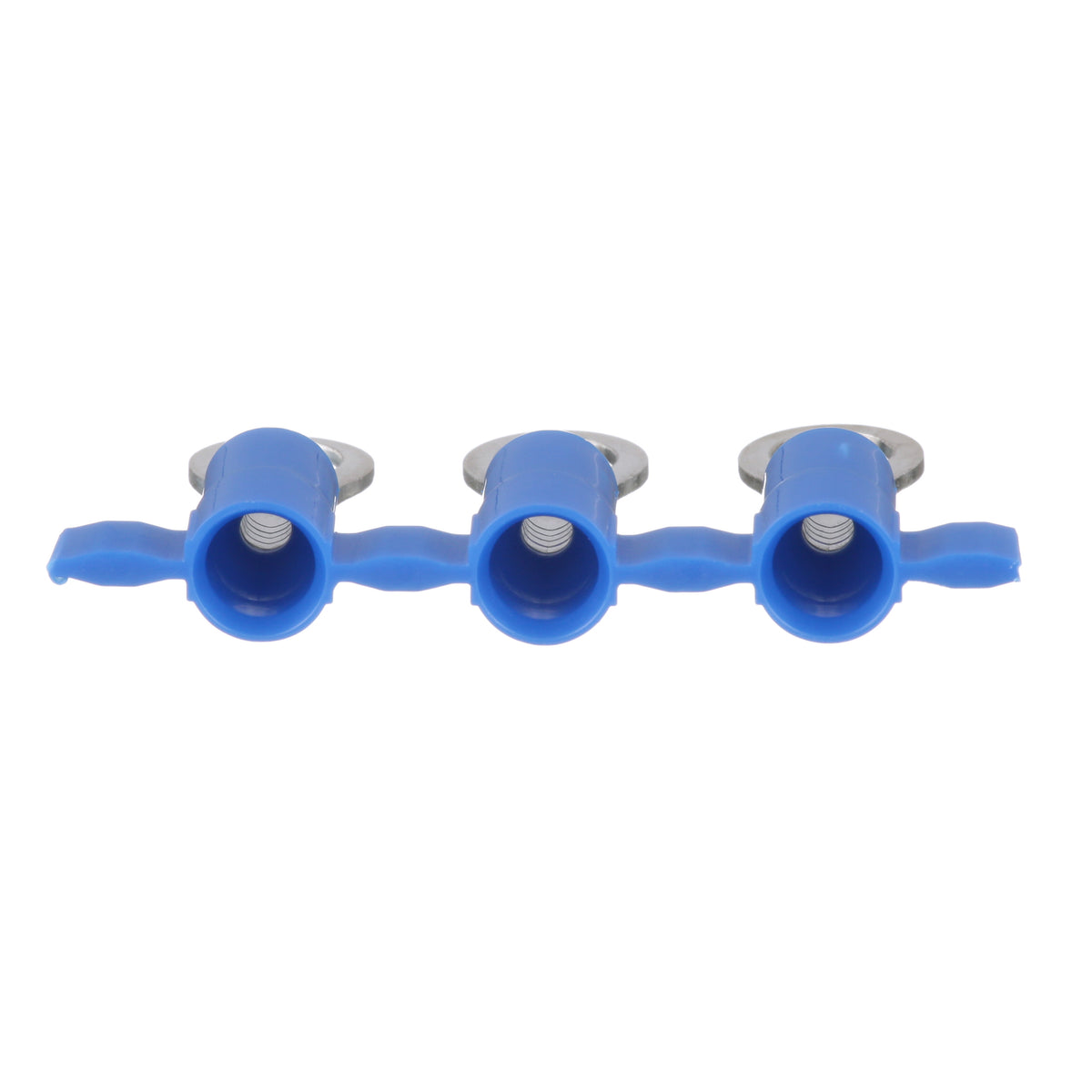

Panduit PV14-38RB-2K | Ring Terminal on Reel | UPC - 07498370535
Regular price
$1,068.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-38RB-2K | Ring Terminal on Reel | UPC - 07498370535
Regular price
$1,068.46
Unit price
Brand: Panduit
|
SKU:
PAN-PV14-38RB-2K
Regular price
$1,068.46
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Reel Smart Terminal, Type PV-RB, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 3/8 in Stud, 1.15 in Length, Insulation Support/Funnel Entry Barrel, Ring Tongue, 0.53 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Multi finger insulation grip, provides superior insulation holding characteristics, especially on EPR and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V groove
- Inner barrel serrations, provide optimum conductivity, reliability and holding power
- 0.18 in Dia maximum insulation, 1.2 in hole center to barrel end, 0.4 in hole center to barrel
- Pure electrolytic copper
- Without inspection hole
Panduit PV14-38RB-2K | Ring Terminal on Reel | UPC - 07498370535 Key Specs
| Stud Hole Size (In.) | 39/100 |
| Stud Hole Size (mm) | 9.9 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PV14-38RB-2K | Ring Terminal on Reel | UPC - 07498370535 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-4RNB-3K Product Page | Download and View |
| Part Drawings | Ring Terminals-A41068 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV14-38RB-2K | Ring Terminal on Reel | UPC - 07498370535 Environmental Information
| Panduit's RoHS Statement | Download and View |
