Brand: Panduit
|
SKU:
10044807

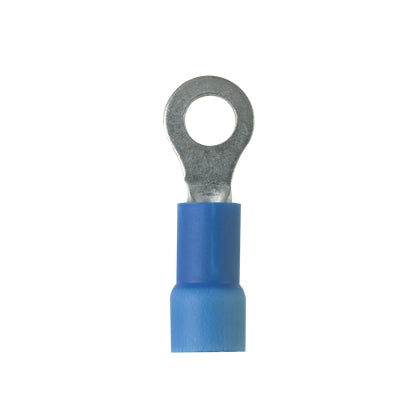

Panduit PV14-38RX-L | Loose Piece Ring Terminal | UPC - 07498380166
Regular price
$61.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-38RX-L | Loose Piece Ring Terminal | UPC - 07498380166
Regular price
$61.13
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-RX, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 3/8 in Stud, 1-1/4 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.53 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.42 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Manufactured from stock 56% thicker than a standard 16 to 14 AWG terminal for use in heavy duty application
- Insulation housing is marked with "HDR" to signify heavy duty ring
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
Panduit Panduit PV14-38RX-L | Loose Piece Ring Terminal | UPC - 07498380166 Key Specs
| Stud Hole Size (In.) | 39/100 |
| Stud Hole Size (mm) | 9.9 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PV14-38RX-L | Loose Piece Ring Terminal | UPC - 07498380166 Environmental Information
| Panduit's RoHS Statement | Download and View |
