Brand: Panduit
|
SKU:
PV14-4R-C

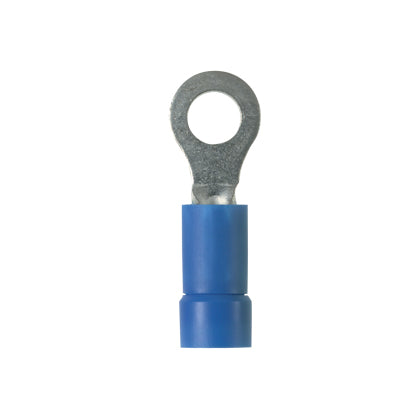

Panduit PV14-4R-C | Loose Piece Ring Terminal | UPC - 07498380114
Regular price
$82.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-4R-C | Loose Piece Ring Terminal | UPC - 07498380114
Regular price
$82.37
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #4 Stud, 0.84 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.19 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PV14-4R-C | Loose Piece Ring Terminal | UPC - 07498380114 Key Specs
| Stud Hole Size (In.) | 1/8 |
| Stud Hole Size (mm) | 3 |
| Stud Size | #4 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PV14-4R-C | Loose Piece Ring Terminal | UPC - 07498380114 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV22-2R-CY Product Page | Download and View |
| Application Notes | Custom Color Insulation Sleeve - TMAN17 Application Note | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV14-4R-C | Loose Piece Ring Terminal | UPC - 07498380114 Environmental Information
| Panduit's RoHS Statement | Download and View |
