Panduit PV14-4RB-3K | Ring Terminal on Reel | UPC - 07498380353
Regular price
$1,156.68
Unit price
Description
Description

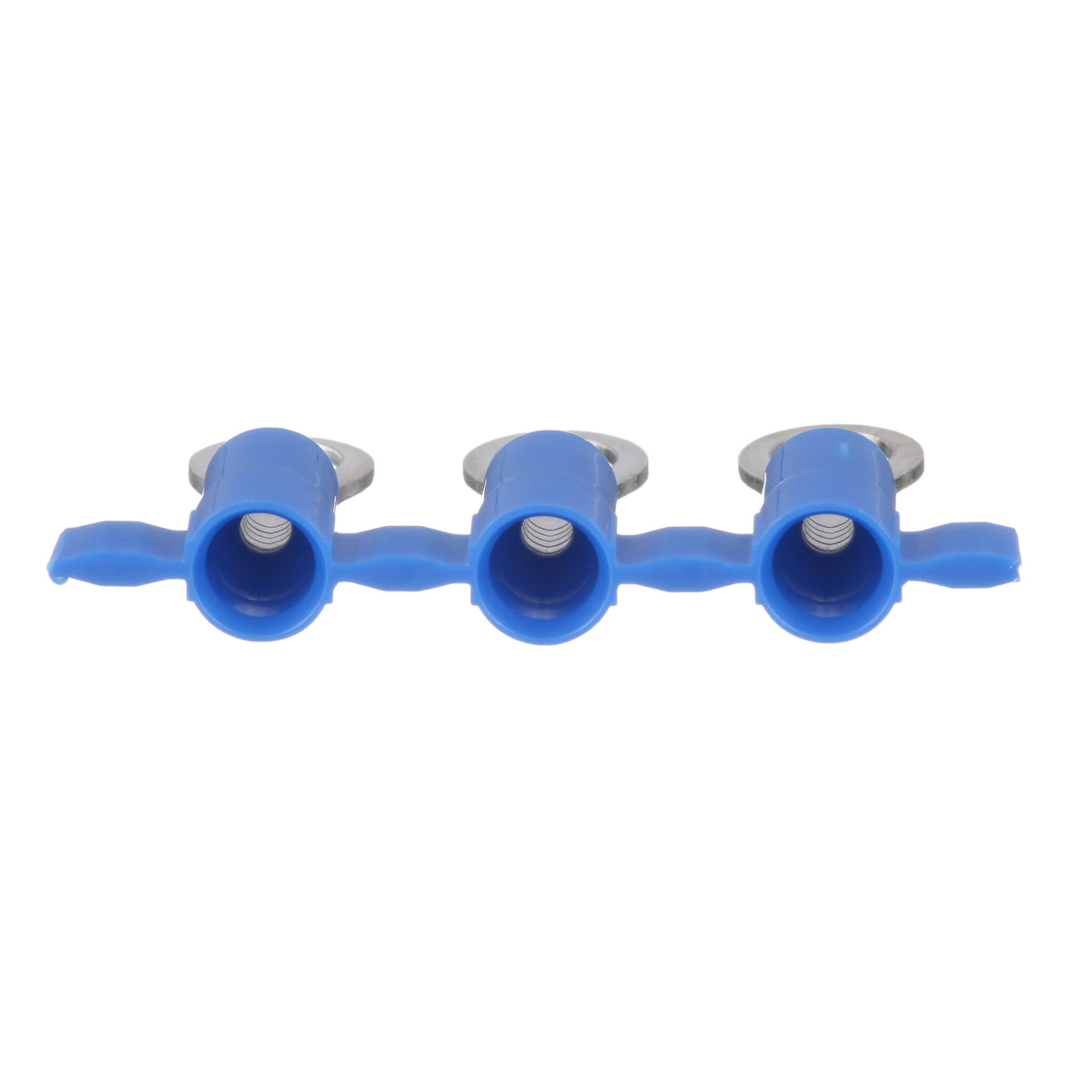

Panduit Pan-Term Reel Smart Terminal, Type PV-RB, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #4 Stud, 0.76 in Length, Insulation Support/Funnel Entry Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Panduit PV14-4RB-3K Key Specs
| Stud Hole Size (In.) | 1/8 |
| Stud Hole Size (mm) | 3 |
| Stud Size | #4 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.7 |
| Flammability Rating | UL 94 V-0 |
| Insulation Diameter (In.) | 0.17 |
| Insulation Diameter (mm) | 4.3 |
| Maximum Operating Temperature (°C) | 105 |
Panduit PV14-4RB-3K Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-4RNB-3K Product Page | Download and View |
| Part Drawings | Ring Terminals-A41068 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
