Brand: Panduit
|
SKU:
PV14-4RX-C

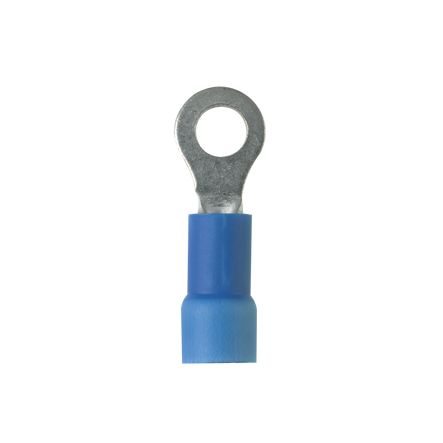

Panduit PV14-4RX-C Ring Terminal, Expanded Vinyl Insulation, 16 - 14 AWG, #4 Stud Size, Pack of 100
Regular price
$94.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-4RX-C Ring Terminal, Expanded Vinyl Insulation, 16 - 1...
Regular price
$94.91
Unit price
Description
Description
Panduit PV14-4RX-C | Pan-Term PV14-4RX-C Loose Piece
Ring Terminal, 16 – 14 AWG, #4 stud size, vinyl insulated, expanded insulation for large wire O.D.
Panduit - PV14-4RX-C - Features
- Ring Terminal, 16 - 14 AWG, #4 stud size, vinyl insulated, expanded insulation for large wire O.D.
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV14-4RX-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV14-4RX-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV14-4RX-C |
| Item Description | Pan-Term PV14-4RX-C Loose Piece |
| Stud Hole Size (In.) | #4 |
| Stud Hole Size (mm) | 2.5 |
| Stud Size | #4 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Expanded Entry |
| Barrel Length (In.) | 0.44 |
| Barrel Length (mm) | 11.2 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.2 |
| Insulation Diameter (mm) | 5.1 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Maximum Wire Insulation Diameter (In.) | 0.2 |
| Maximum Wire Insulation Diameter (mm) | 5.1 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.87 |
| Overall Length (mm) | 22.1 |
| Overall Width (In.) | 0.25 |
| Overall Width (mm) | 6.4 |
| Tongue Length (In.) | 0.44 |
| Tongue Length (mm) | 11.2 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.25 |
| Tongue Width (mm) | 6.4 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - PV14-4RX-C - Package Information
| UPC | 07498380154 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0070 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.0351 |
