Panduit PV14-56RB-2K | Reel Smart Ring Terminal, Blue, Vinyl, 14-16...
Description
Description
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.

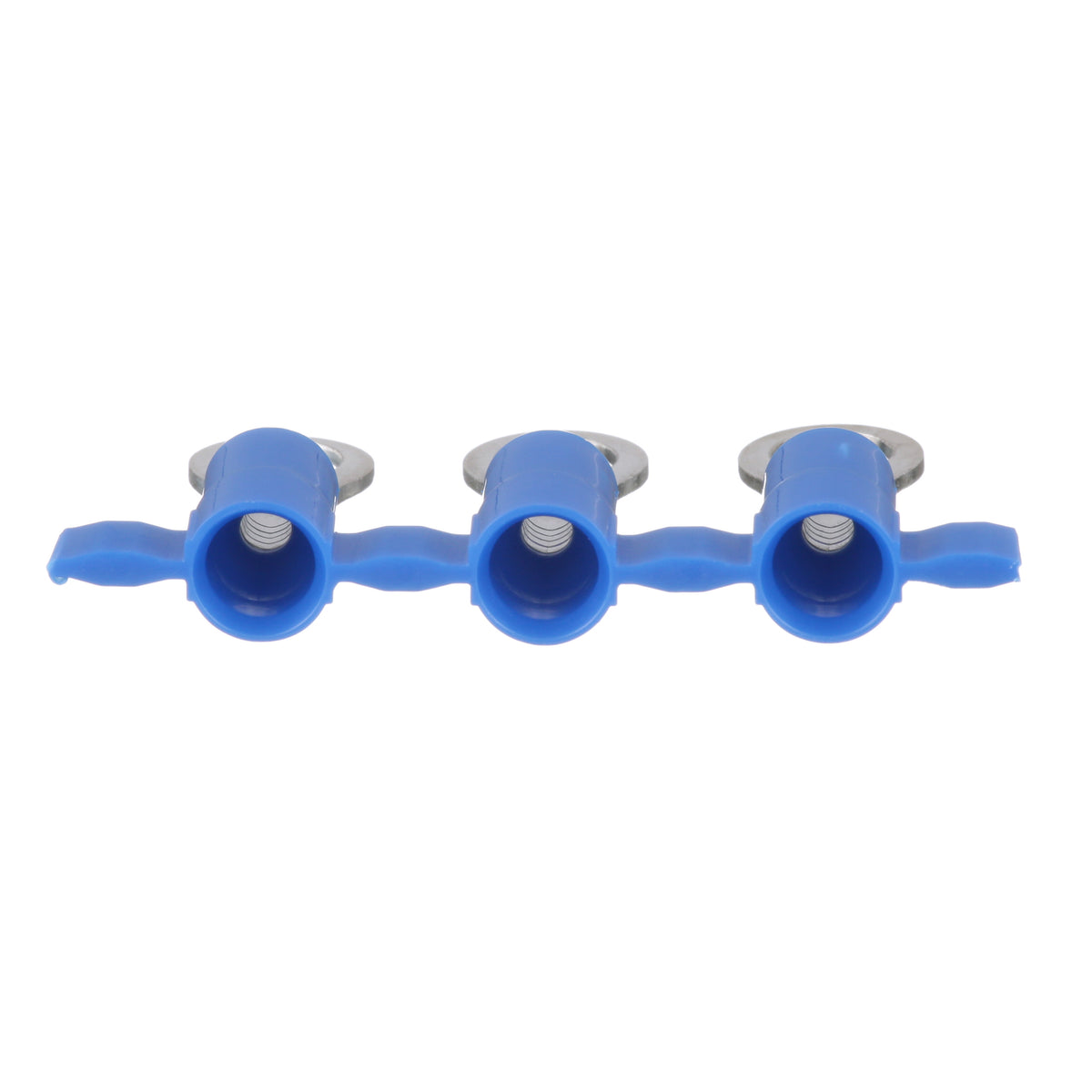

The PV14-56RB-2K Reel Smart Terminal is a continuously molded and vinyl fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from s plitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit Pan-Term Reel Smart Terminal, Type PV-RB, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 5/16 in Stud, 1.06 in Length, Insulation Support/Funnel Entry Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Panduit - PV14-56RB-2K - Features
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- EPR and other elastic or hard to grip Insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Multi-finger insulation grip - Provides superior insulation holding characteristics
- Especially on epr and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V groove
- Inner barrel serrations, provide optimum conductivity, reliability and holding power, smooth funnel entry - easy wire insertion
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Maximum insulation temperature 221F (105C)
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV14-56RB-2K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV14-56RB-2K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 8 |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498370534 |
Panduit - PV14-56RB-2K - Videos
| Panduit PV14-56RB-2K Video 1 | Click to View |
|---|
