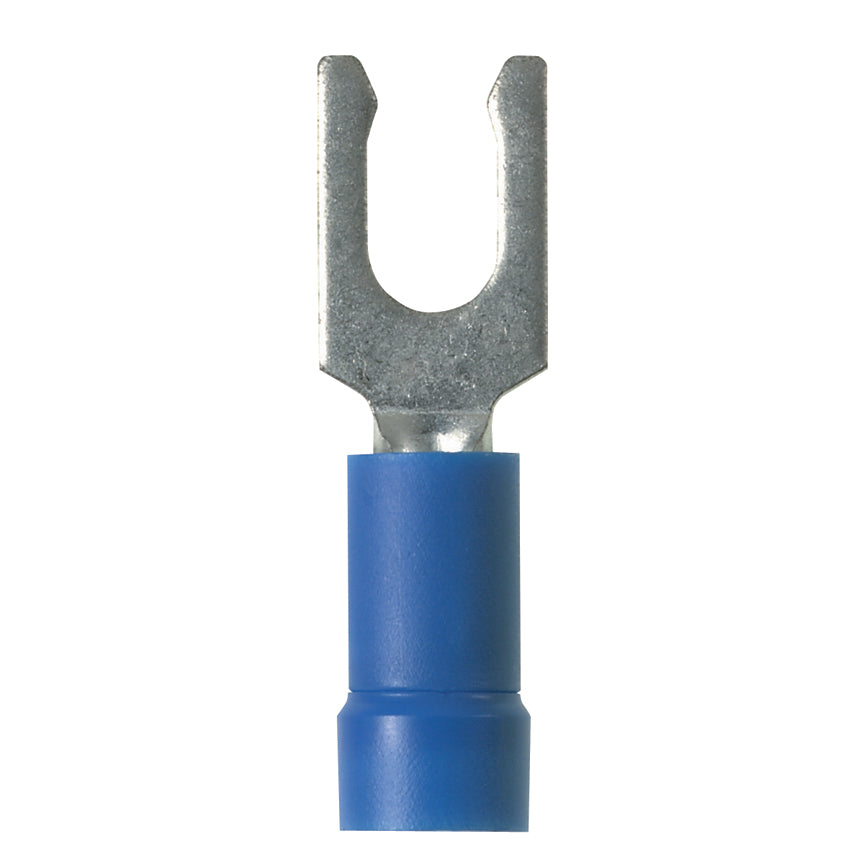

Panduit PV14-6LF-C | Pan-Term Fork Terminal, Blue, Vinyl, 14-18 AWG...
Description
Description
Our one-piece, vinyl-insulated design make installations quick and easy with our locking fork terminal. Ensure a reliable connection with a secure locking mechanism.
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-LF, Stranded Copper Conductor, 18 to 14 AWG Conductor, #6 Stud, 0.9 in Length, Brazed Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.17 in Dia Vinyl Insulation, 0.22 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Panduit - PV14-6LF-C - Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Locks in place for secure connection insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - PV14-6LF-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV14-6LF-C |
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498380806 |
Panduit - PV14-6LF-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
Panduit - PV14-6LF-C - Videos
| Panduit PV14-6LF-C Video 1 | Click to View |
|---|---|
| Panduit PV14-6LF-C Video 2 | Click to View |
