Brand: Panduit
|
SKU:
PV14-6LF-EA

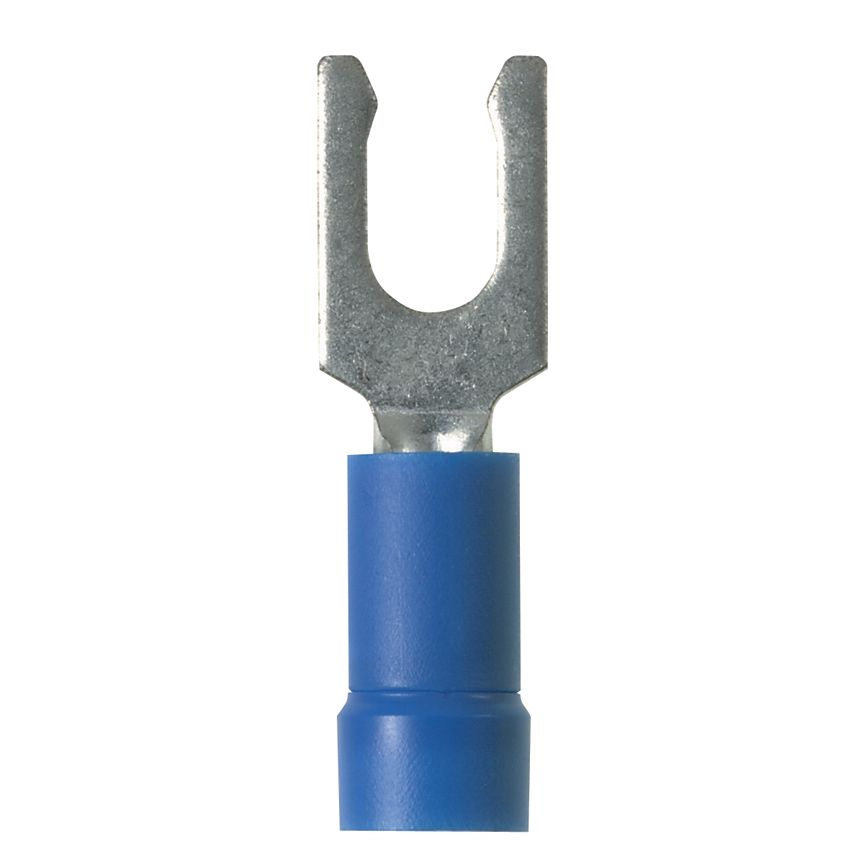

Panduit PV14-6LF-C | Pan-Term Fork Terminal, Blue, Vinyl, 14-18 AWG, #6 Stud, PK100
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-6LF-C | Pan-Term Fork Terminal, Blue, Vinyl, 14-18 AWG...
Regular price
$1.46
Unit price
Description
Description
Panduit PV14-6LF-C | Pan-Term Fork Terminal, Blue, Vinyl, 14-18 AWG, #6 Stud, PK100
Our one-piece, vinyl-insulated design make installations quick and easy with our locking fork terminal. Ensure a reliable connection with a secure locking mechanism.
Specifications
Specifications
Panduit - PV14-6LF-C - Specifications
| Fork Type | Locking Fork |
|---|---|
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
Panduit - PV14-6LF-C - Package Includes
| UPC | 07498380806 |
|---|---|
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0074 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.0368 |
Panduit - PV14-6LF-C - Videos
| Panduit PV14-6LF-C Video | Click to View |
|---|
