Brand: Panduit
|
SKU:
PAN-PV14-6LFB-3K
Panduit PV14-6LFB-3K | Terminals on a Reel | UPC - 07498380845
Regular price
$1,162.92
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-6LFB-3K | Terminals on a Reel | UPC - 07498380845
Regular price
$1,162.92
Unit price
Brand: Panduit
|
SKU:
PAN-PV14-6LFB-3K
Regular price
$1,162.92
Unit price
Shipping calculated at checkout.
Description
Description

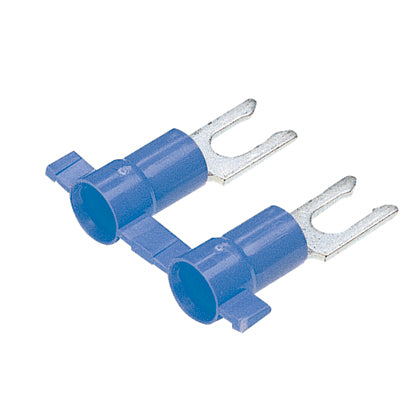

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PV-LFB, Stranded Copper Conductor, 16 to 14 AWG Conductor, #6 Stud, 0.85 in Length, Butted Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 0.17 in Dia Vinyl Insulation, 0.18 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Panduit PV14-6LFB-3K | Terminals on a Reel | UPC - 07498380845 Key Specs
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | CSA certified C22.2 No.65,UL Listed UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PV14-6LFB-3K | Terminals on a Reel | UPC - 07498380845 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-6LFB-3K Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41071 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV14-6LFB-3K | Terminals on a Reel | UPC - 07498380845 Environmental Information
| Panduit's RoHS Statement | Download and View |
