Brand: Panduit
|
SKU:
9950247
Panduit PV14-6R-E | Loose Piece | UPC - 07498336255
Regular price
$82.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-6R-E | Loose Piece | UPC - 07498336255
Regular price
$82.95
Unit price
Description
Description

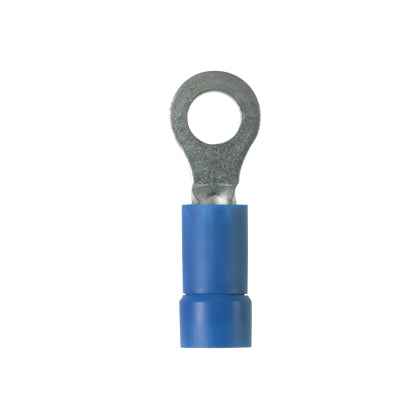

Ring Terminal, 16 – 14 AWG, #6 stud size, vinyl insulated, funnel entry, convenience package.
Panduit Panduit PV14-6R-E | Loose Piece | UPC - 07498336255 Key Specs
| Stud Hole Size (In.) | 3/20 |
| Stud Hole Size (mm) | 3.8 |
| Stud Size | #6 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PV14-6R-E | Loose Piece | UPC - 07498336255 Data Sheets
| Cross References | Cross Reference - Obsolete and Replacementnew | Download and View |
| Selection Guides | Selection Guide - WW-TMFL05 New Convenience Pack Terminals2 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PV14-6R-E | Loose Piece | UPC - 07498336255 Environmental Information
| Panduit's RoHS Statement | Download and View |
