Panduit PV14-6RN-M | Loose Piece | UPC - 07498380181
Regular price
$272.09
Unit price
Brand: Panduit
|
SKU:
PAN-PV14-6RN-M
Regular price
$272.09
Unit price
Shipping calculated at checkout.
Description
Description

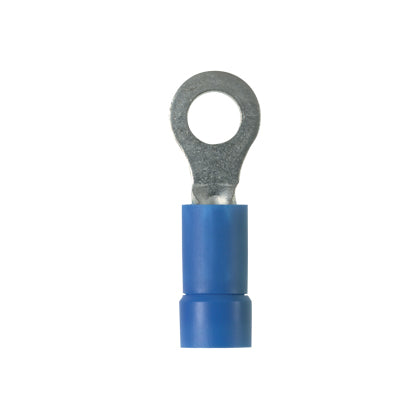

Panduit Pan-Term Terminal, Type PV-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #6 Stud, 0.84 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.19 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PV14-6RN-M | Loose Piece | UPC - 07498380181 Key Specs
| Stud Hole Size (In.) | 3/20 |
| Stud Hole Size (mm) | 3.8 |
| Stud Size | #6 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PV14-6RN-M | Loose Piece | UPC - 07498380181 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Ring terminals, 2 PC. Vinyl insulated, #16-14 | Download and View |
| Selection Guides | Easy Selection Guide for Pan-Term® Selection Guide TMSG11--SA-ENG | Download and View |
Panduit PV14-6RN-M | Loose Piece | UPC - 07498380181 Environmental Information
| Panduit's RoHS Statement | Download and View |
