Panduit PV14-6RNB-3K | Reel Smart Ring Terminal, Narrow, Blue, Viny...
Description
Description
Deliver consistent, high-quality connections in tight spaces with its secure grip with our narrow tongue ring terminal, and wire protection for reliable performance.

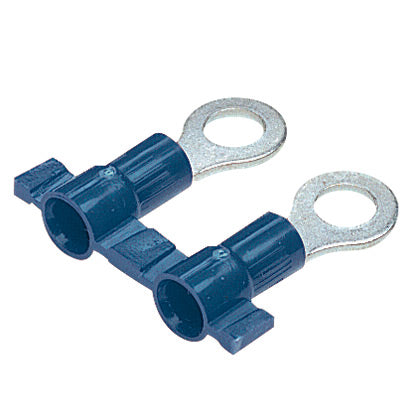

Ring Terminal, narrow tongue, vinyl insulated, funnel entry, plastic insulation crimp, 16 " 14 AWG wire range, #6 stud size.
Panduit Pan-Term Reel Smart Terminal, Type PV-RN, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #6 Stud, 0.76 in Length, Butted Seam/Funnel Entry/Insulation Support Barrel, Narrow Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 0.22 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Panduit - PV14-6RNB-3K - Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Maximum insulation temperature 221F (105C)
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV14-6RNB-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV14-6RNB-3K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.7 |
| UPC | 07498380355 |
