Brand: Panduit
|
SKU:
10044790
Panduit PV14-6RX-C | Loose Piece | UPC - 07498380156
Regular price
$95.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-6RX-C | Loose Piece | UPC - 07498380156
Regular price
$95.29
Unit price
Description
Description

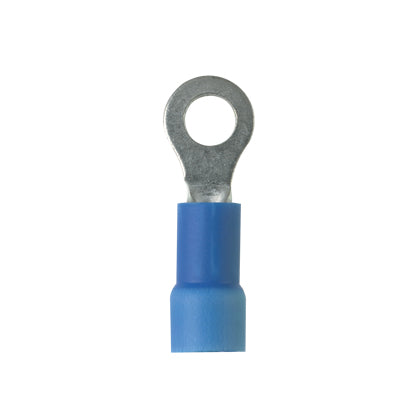

Panduit Pan-Term Terminal, Type PV-RX, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #6 Stud, 0.96 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Manufactured from stock 56% thicker than a standard 16 to 14 AWG terminal for use in heavy duty application
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
Panduit Panduit PV14-6RX-C | Loose Piece | UPC - 07498380156 Key Specs
| Stud Hole Size (In.) | 3/20 |
| Stud Hole Size (mm) | 3.8 |
| Stud Size | #6 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PV14-6RX-C | Loose Piece | UPC - 07498380156 Environmental Information
| Panduit's RoHS Statement | Download and View |
